TX140 S1
Upgrade and Maintenance Manual
283
Expansion cards and back
up un
its

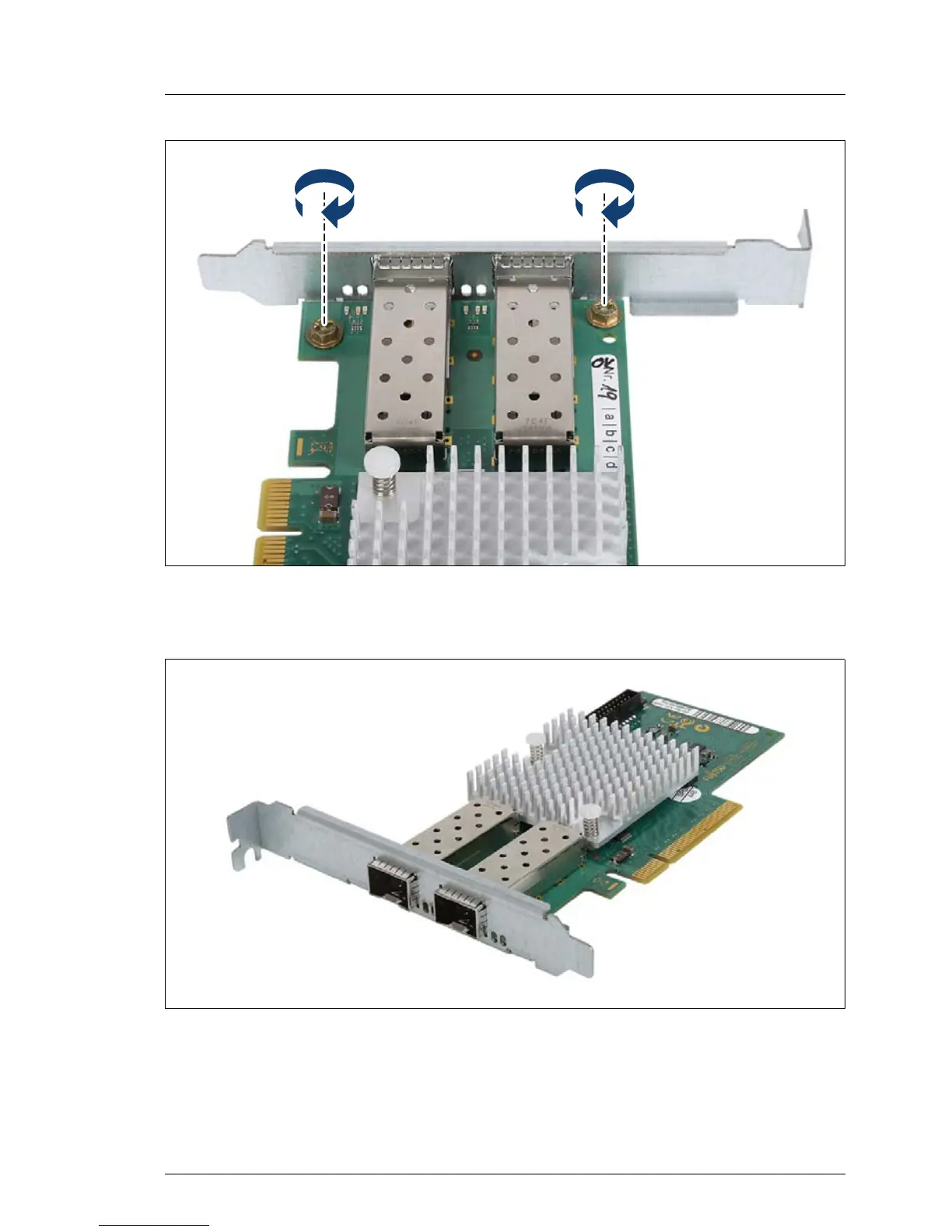

Figure 151: Ne
twork adapter
D2755 - M
ounting the slot brac
ket (B
)
Ê
Secure the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 152: Ne
twork adapter
D2755 - M
ounting the slot brac
ket (C
)
I
Assembled network adapter D2755
282
284
