214 Upgrade and Maintenance Manual TX140 S1
System fan and air duct
8.2.3 Removing the fan

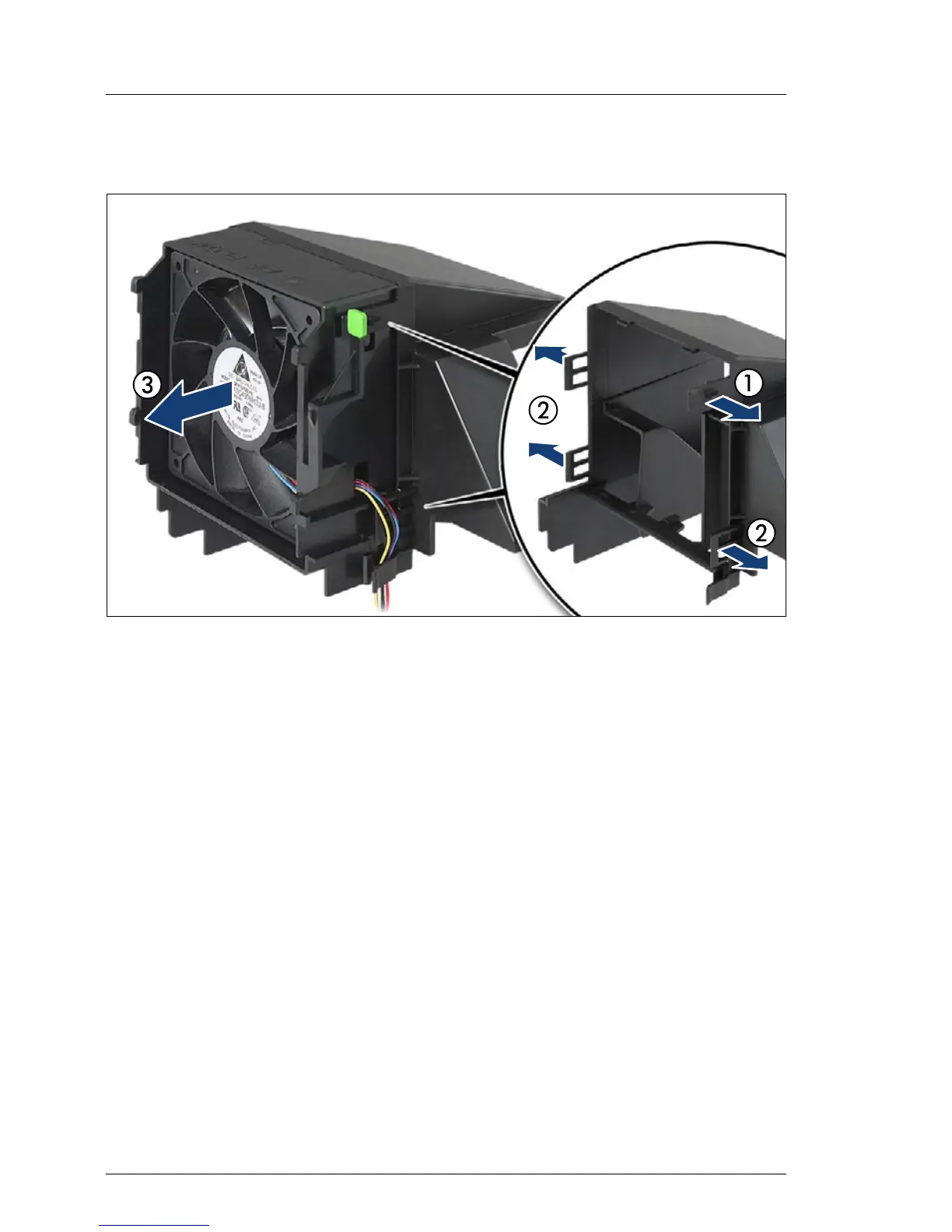

Figure 100: Removing the fan holder from the air duct
Ê Pull out on the locking latch (1) and the retaining brackets (2).
Ê Remove the fan holder from the air duct (3).
