TX140 S1 Upgrade and Maintenance Manual 249
Expansion cards and backup units
Ê At a slight angle, fit the BBU under the right retaining bracket on the BBU
holder (1).
Ê Fold down the BBU until it locks in place (2).
9.3.1.4 Installing the BBU holder into the chassis
I There are different BBUs available. The position of the BBU cable on the
BBU can differ from the following example.

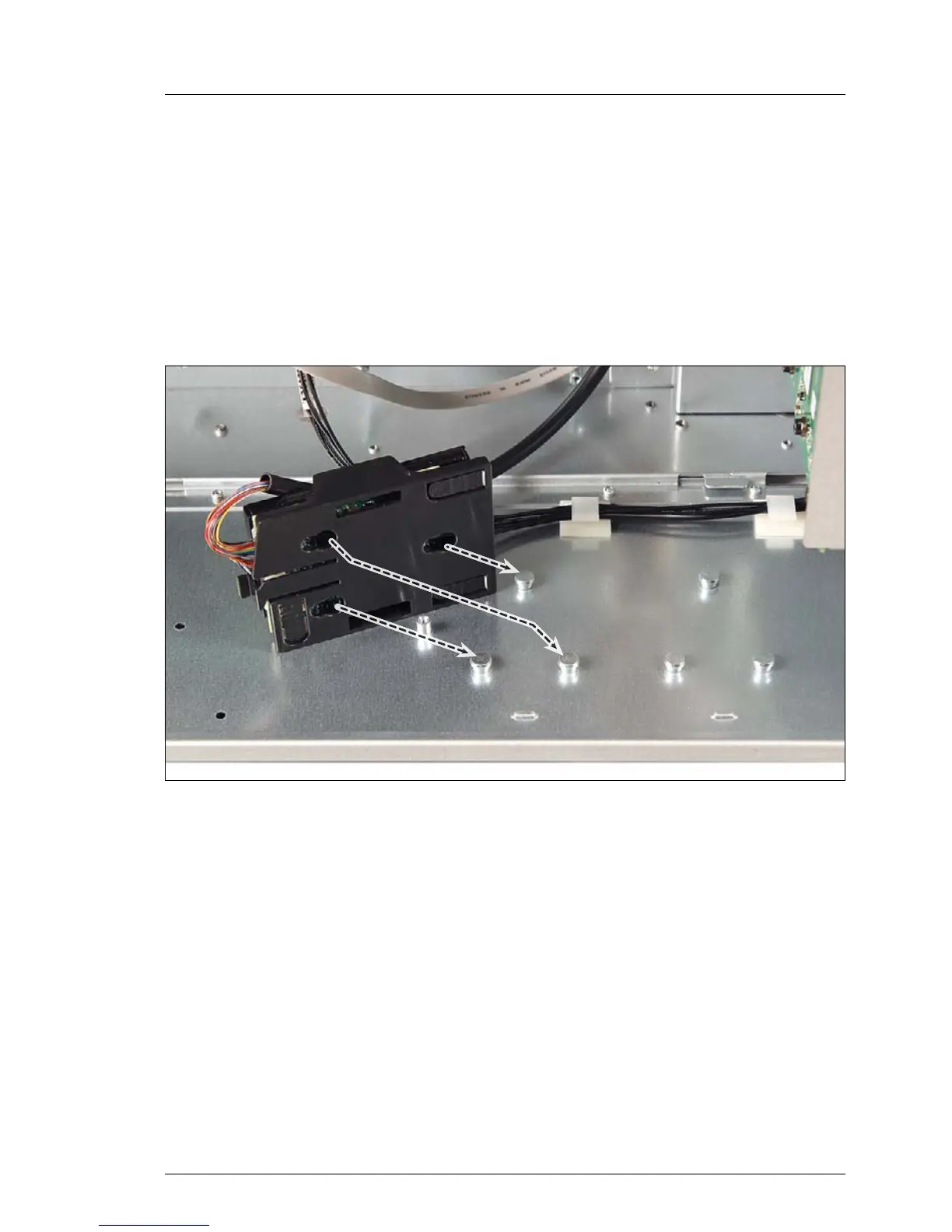

Figure 123: Installing the BBU holder (A)
I Note the positions of the fixation bolts on the chassis floor and keyhole
slots on the BBU holder.
