142 Upgrade and Maintenance Manual TX140 S1
Power supply
6.2.7 Installing the power supply module

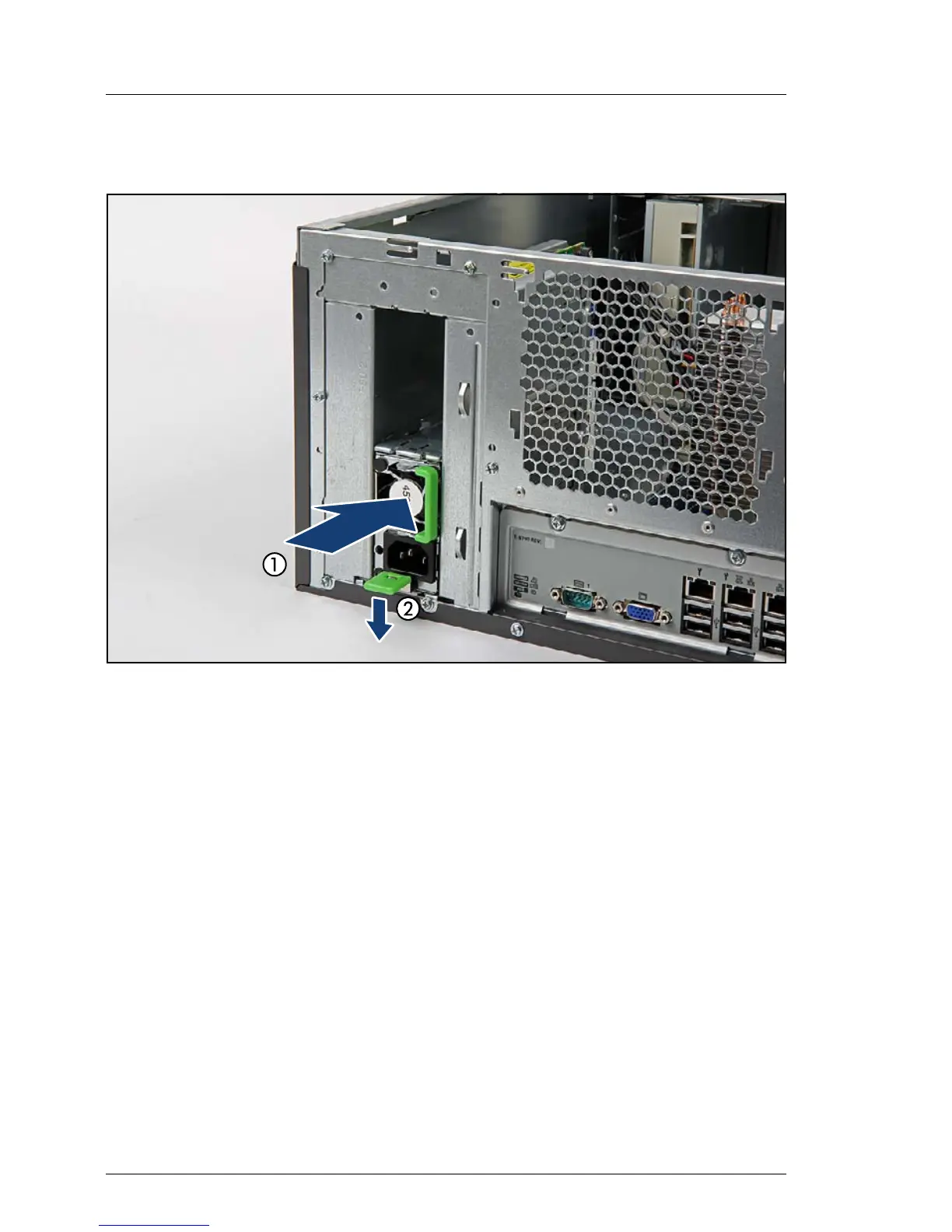

Figure 54: Installing the power supply module
Ê Push the PSU module into its slot (1) as far as it will go until the locking latch
snaps in place (2).
V CAUTION!
Ensure that the PSU module properly engages in its slot and is locked
in position in order to prevent it from sliding out of the chassis during
transportation.
Ê If applicable, fold down the handle on the PSU module.
