TX140 S1 Upgrade and Maintenance Manual 141
Power supply

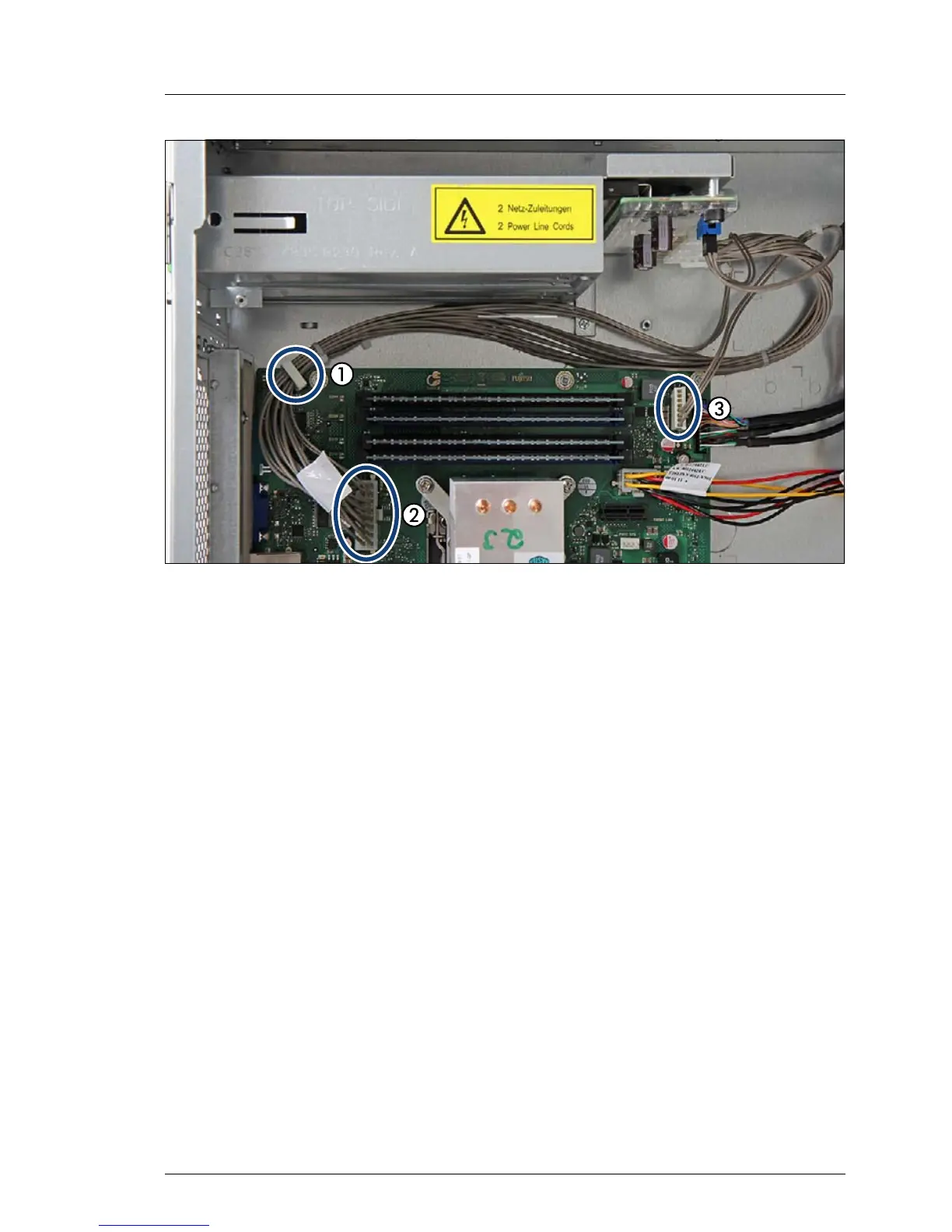

Figure 53: Connecting power cables to the system board
Ê Route the cable with power connector P1 in the system board cable clamp
(1).
Ê Connect the power connector P1 to system board connector POWER1 (2).
Ê Connect the small white power connector to system board connector
PC2009 (3).
