TX140 S1 Upgrade and Maintenance Manual 537
Cabling
16.5.4.2 Installing the SAS / SATA backplane cable

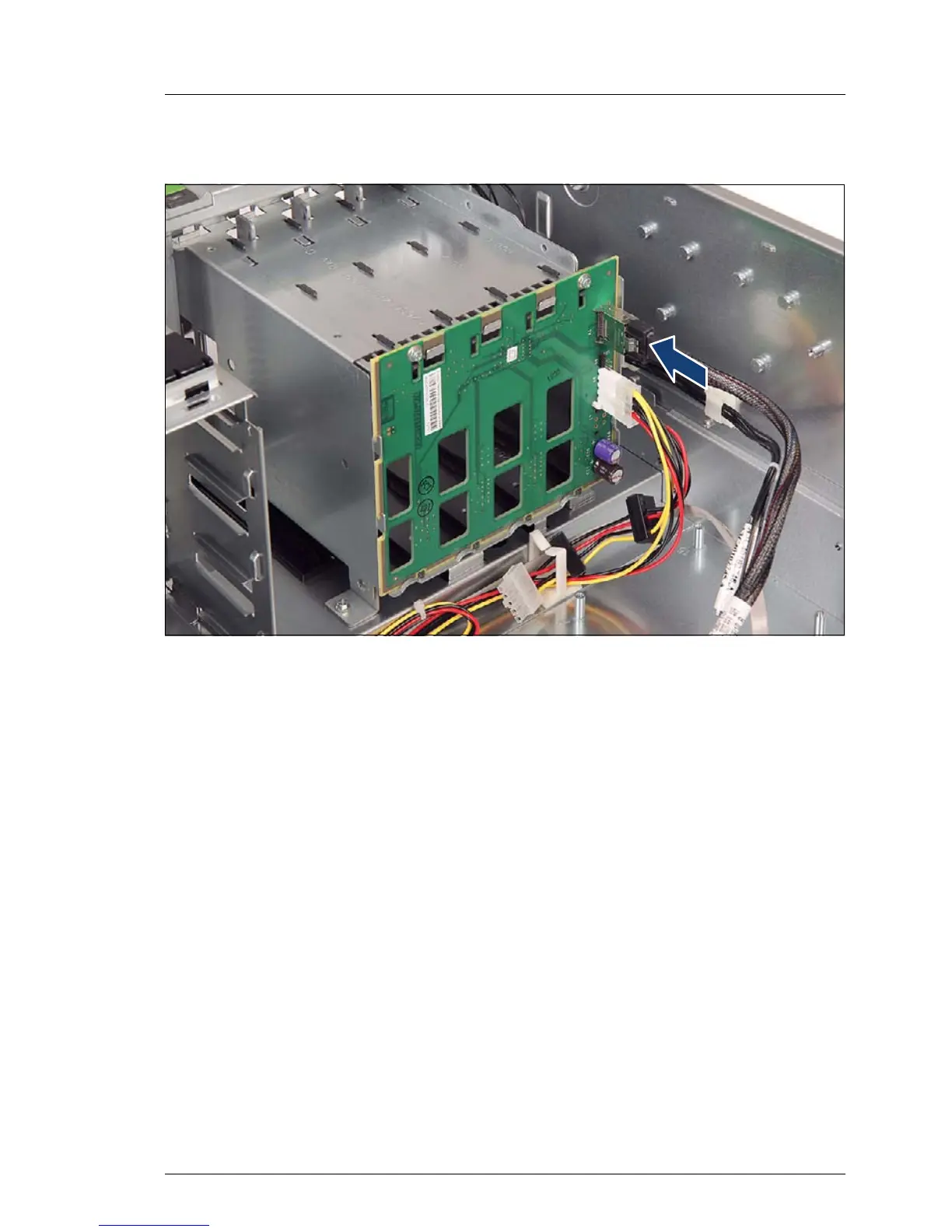

Figure 367: Installing the SAS / SATA cable (3.5-inch HDD model) (A)
Ê Reconnect the new SAS / SATA cable to the 3.5-inch HDD SAS / SATA
backplane connector X1.
