Basic hardware procedures
4.4.3 Removing the server from the rack
V CAUTION!
At least two people are needed to lift the server out of the rack cabinet.
(For the Japanese market, please refer to " 安全上のご注意 ".)
Additionally, a lifter is required in the following cases:
– The server weighs more than 50 kg.
– The server weighs more than 21 kg and is installed above the height
of 25 U.
When using a lifter, this removal procedure needs to carried out by
maintenance personnel.
Ê Shut down the server and remove external cables as described in section
"Preliminary steps" on page 64.
Ê Loosen the two captive knurled thumb screws on the rack mounting frame
and pull the server out of the rack as described in section "Extending the
server out of the rack" on page 65.

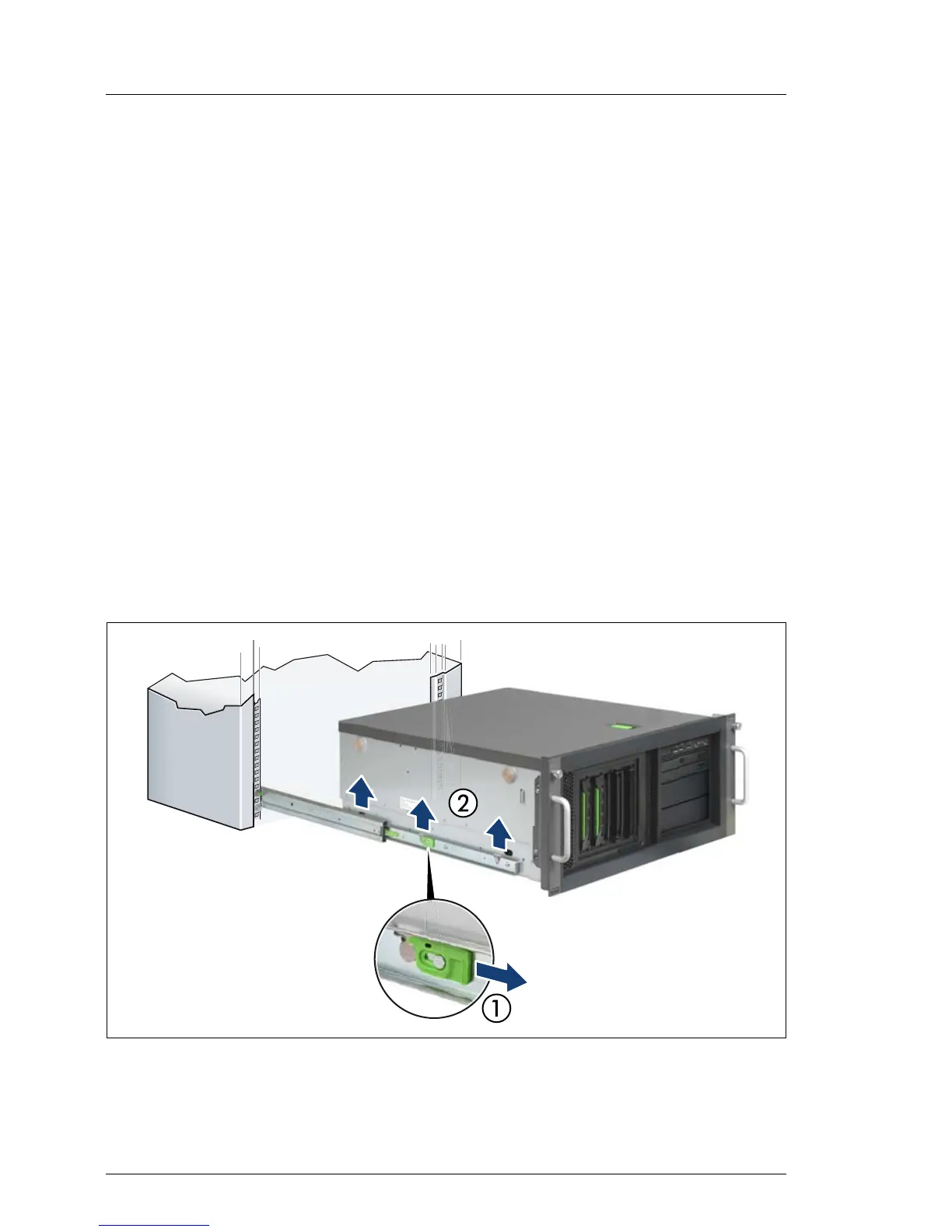

Figure 11: Removing the server from the rack
Ê Release the locking bars on both rails (1).
Ê Lift the server out of the rails (2) and place it on an even surface.
