464
Upgrade and Mai
ntenance Manual
TX140
S1
System board and compo
nent
s
14.4.4.2
Swapping
the processor

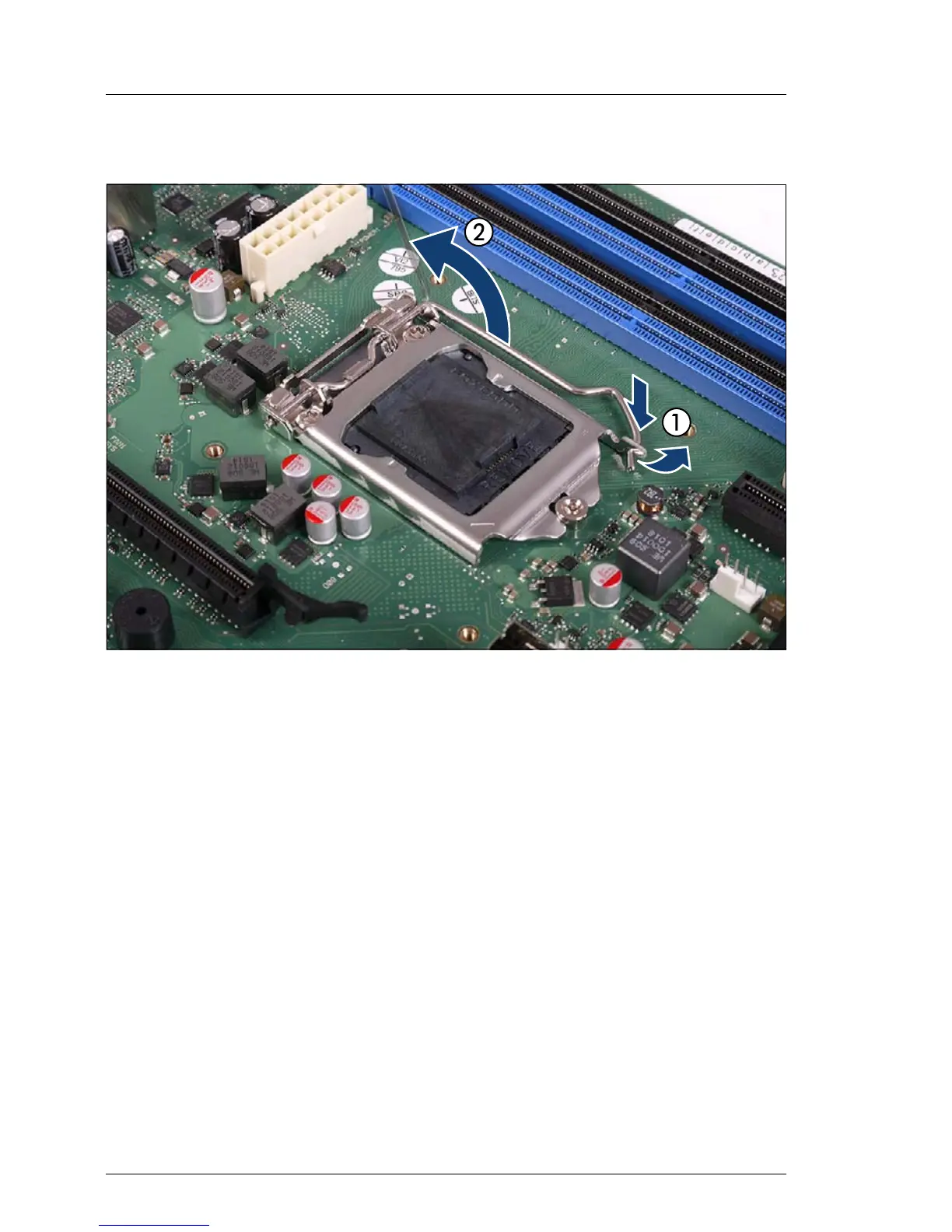

Figure 298: Unlatching
the socket lever (new syst
em board)
Ê
Unlatch the socket lever on the new system board by pushing it down and
away from the socket (1).
Ê
Fold back the socket release lever to disengage the load plate (2).
