164 Upgrade and Maintenance Manual TX140 S1
Hard disk drives / solid state drives
7.2.2.2 Preliminary steps
Before installing a 2.5-inch HDD / SSD module, perform the following steps:
Ê If applicable, open the rack door as described in section "Opening the rack
door" on page 61.
Ê When working on a tower server, open the HDD bay cover as described in
section "Removing the HDD bay cover" on page 76.
Ê Locate the correct drive bay as described in section "Mounting order for 2.5-
inch HDDs / SSDs" on page 161.
7.2.2.3 Removing a 2.5-inch HDD / SSD dummy module

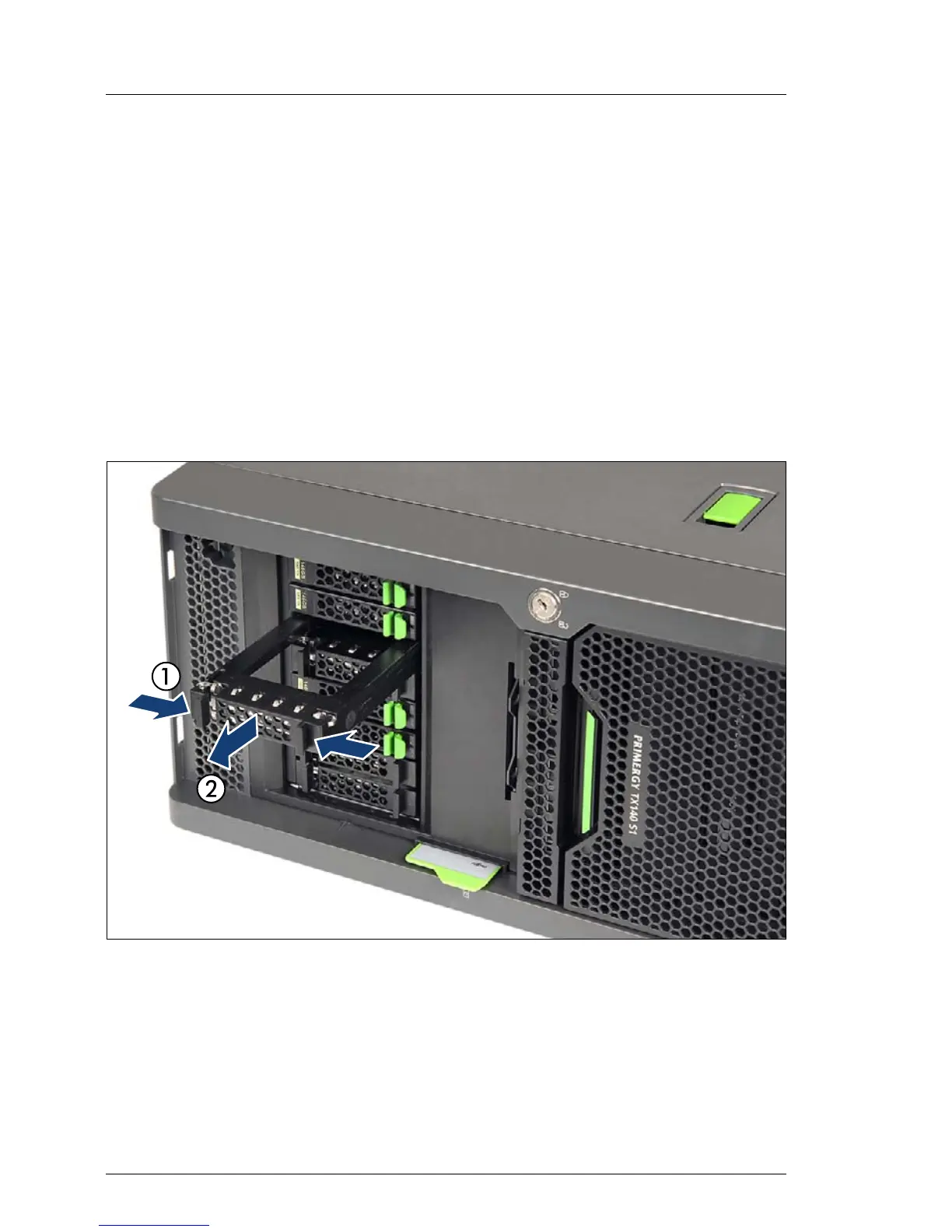

Figure 65: Removing a 2.5-inch dummy module
I Dummy modules have been installed into unused HDD / SSD bays.
Before installing an additional HDD / SSD, the dummy module needs to
be removed from the desired drive bay.
Ê Press in on the locking clips on left side of the dummy module to disengage
the locking mechanism (1).
