TX140 S1 Upgrade and Maintenance Manual 531
Cabling
16.5.3 2.5-inch HDD / SSD model
16.5.3.1 Removing SAS / SATA backplane cables

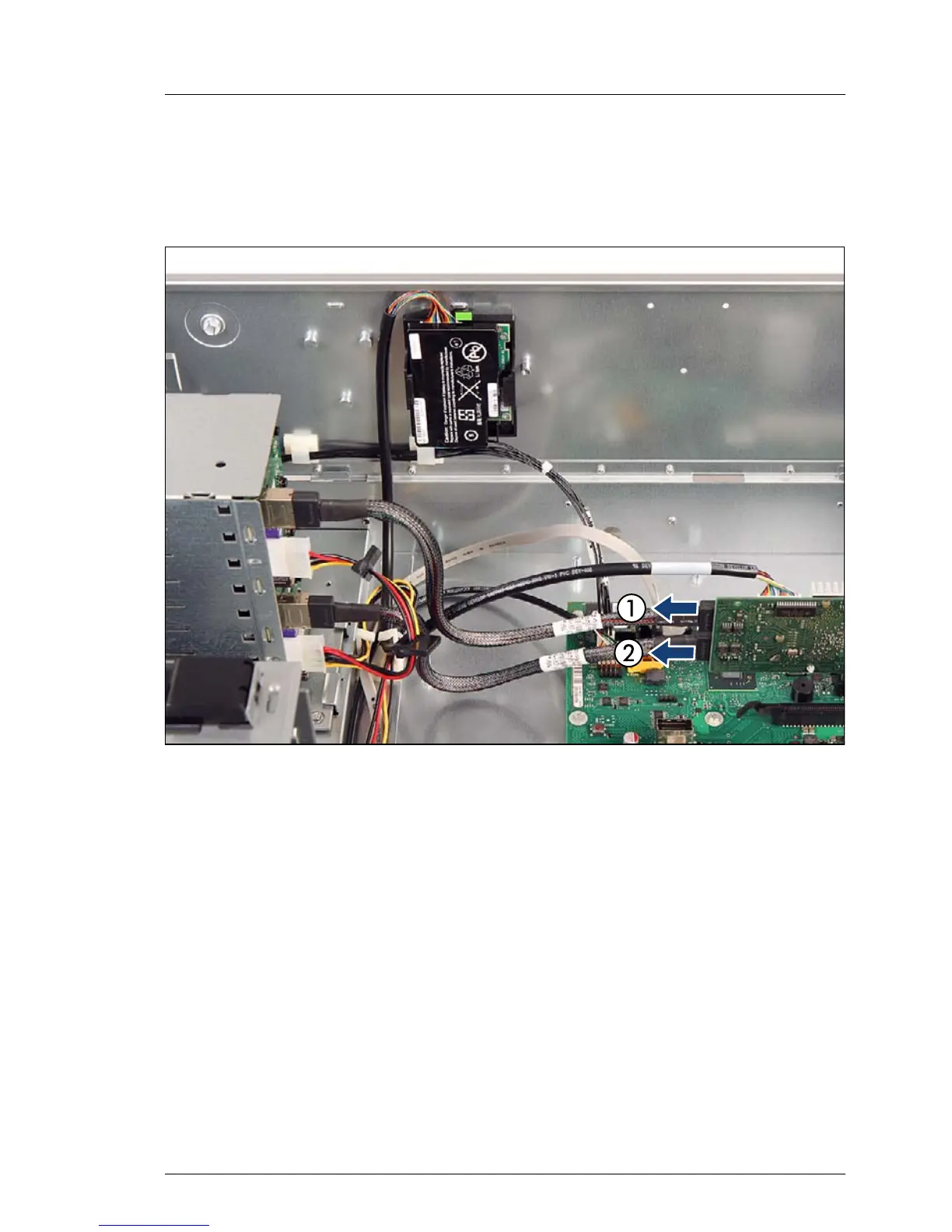

Figure 361: Removing the SAS / SATA cables (2.5-inch HDD model) (A)
Ê Disconnect the SAS / SATA cable from SAS controller connectors MLC1 (1)
and MLC2 (2).
