384 Upgrade and Maintenance Manual TX140 S1
Front panel and external connectors
Ê Open the side / top cover as described in section "Removing the top cover"
on page 67 (rack server) or "Removing the side cover" on page 71 (tower
server).
Ê Pull out the ID card and open the front cover as described in section
"Removing the rack front cover" on page 69 (rack server) or "Removing the
front cover" on page 74 (tower server).
Ê Remove the fan module as described in section "Removing the fan module"
on page 208.
13.2.1.3 Removing the front panel module

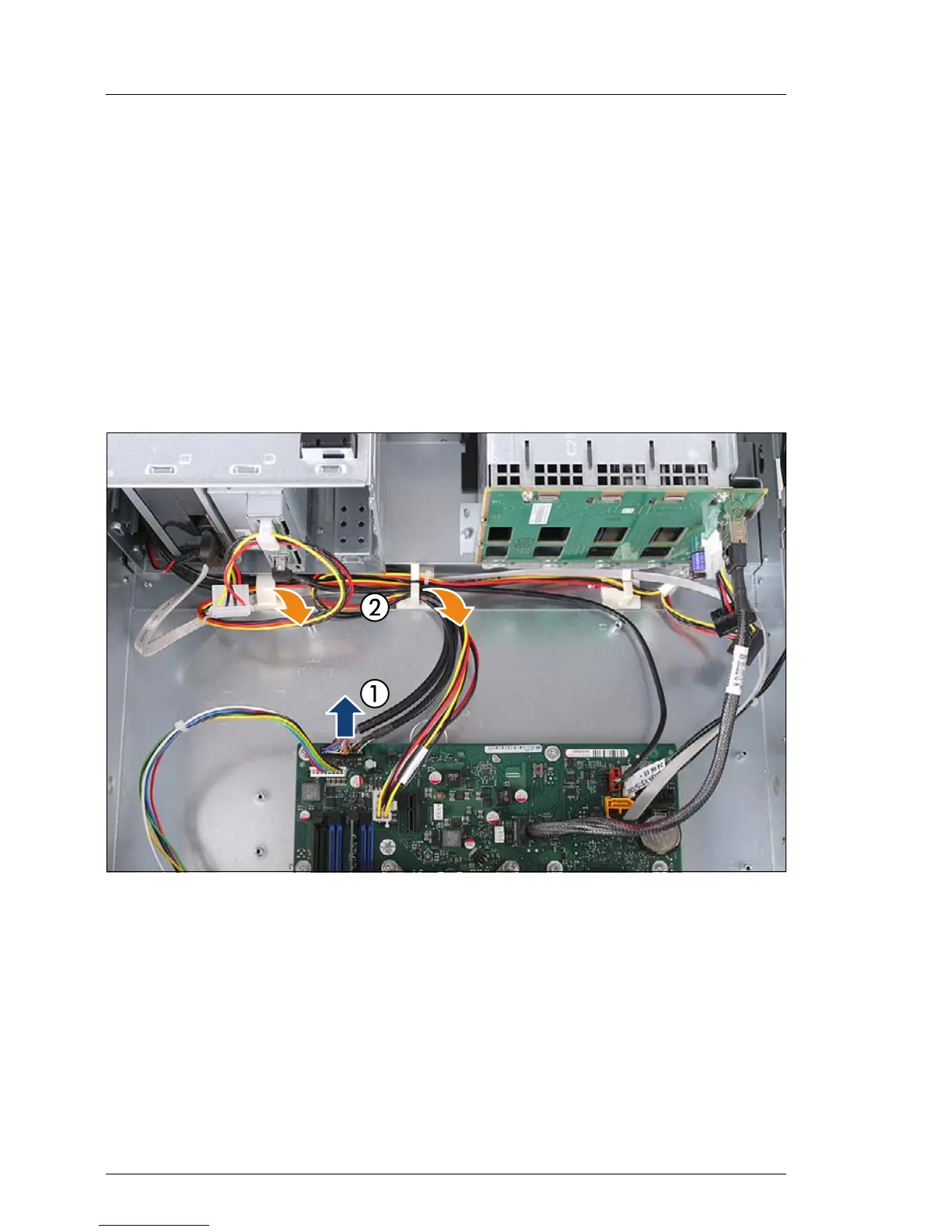

Figure 233: Disconnecting front panel cables
Ê Disconnect the front panel cable from the system board (1).
Ê Remove the front panel cable from the cable clamps as shown (see orange
arrows) (2).
