374 Upgrade and Maintenance Manual TX140 S1
Front panel and external connectors
13.1.3 Removing the front panel module

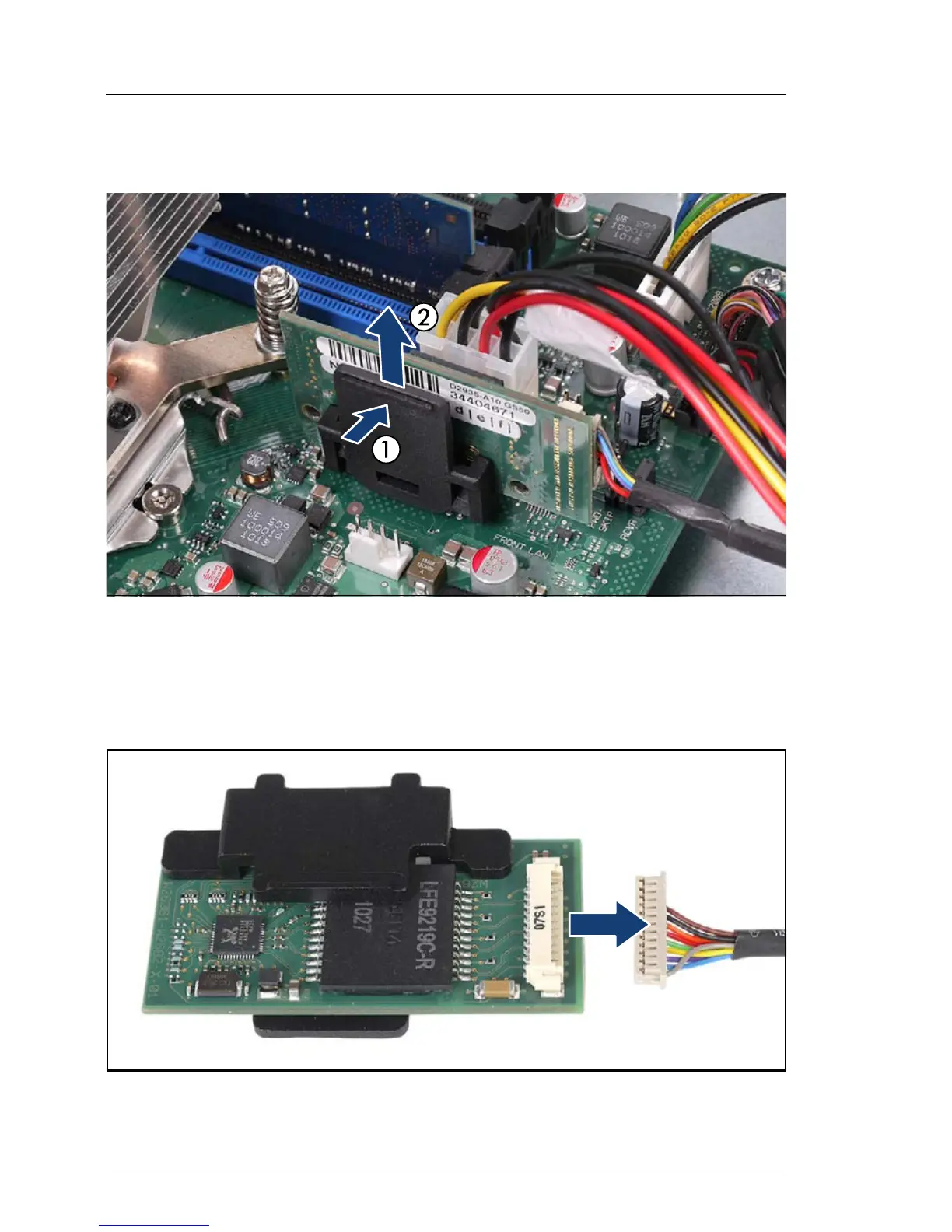

Figure 223: Disconnecting the front LAN board
Ê If applicable, disconnect the front LAN board from the system board:
Press in on the locking latch on the front LAN board holder (1) and pull the
front LAN board out of its socket (2).
Figure 224: Disconnecting the front LAN cable
Ê Disconnect the front LAN cable from the front LAN board.
