TX140 S1 Upgrade and Maintenance Manual 375
Front panel and external connectors
Ê Remove the front LAN board from the chassis.

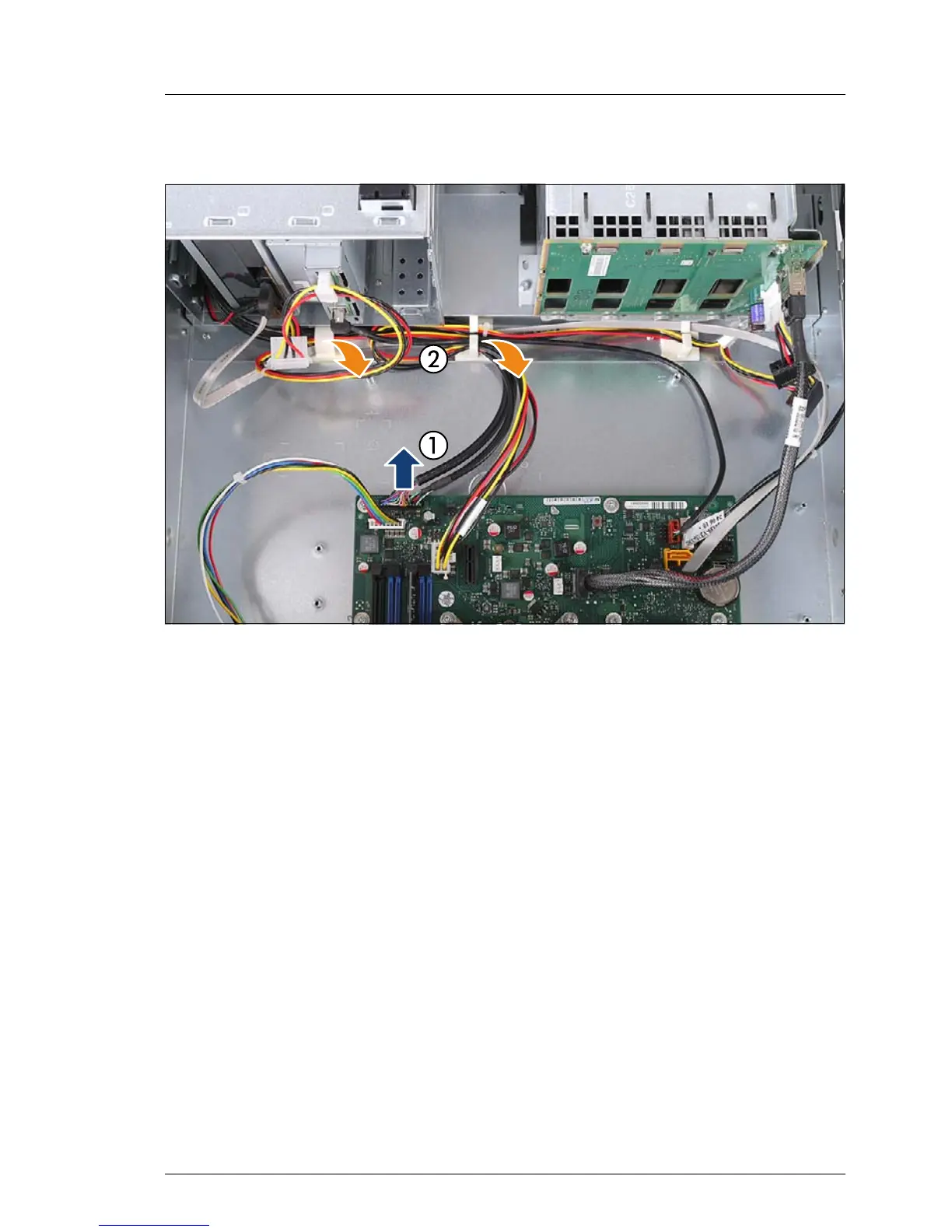

Figure 225: Disconnecting front panel cables
Ê Disconnect the front panel cable from the system board (1).
Ê Remove the front panel cable from the cable clamps as shown (see orange
arrows) (2).
