376
Upgrade and Mai
ntenance Manual
TX140
S1
Front panel and external connectors

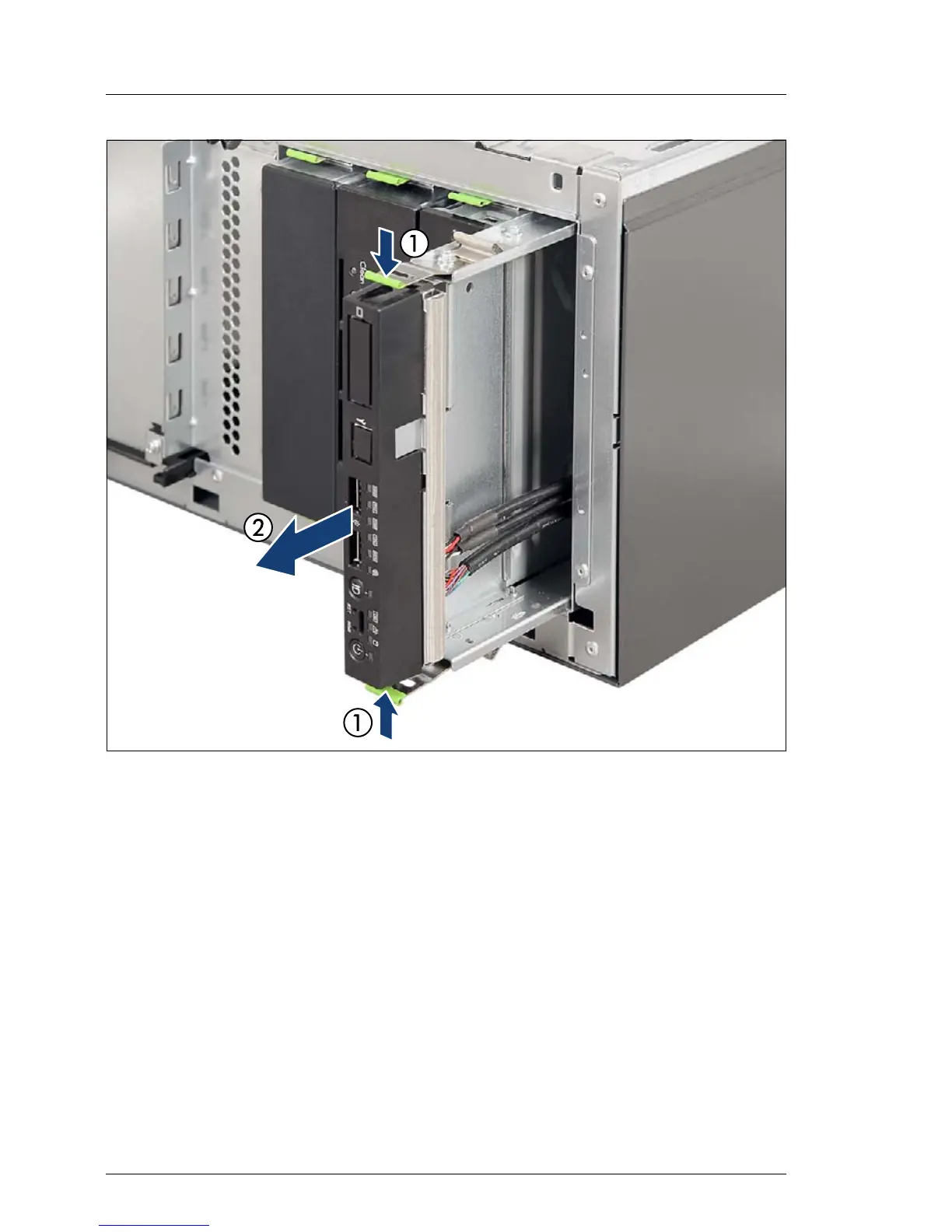

Figure 226: Removing the f
ront panel module
Ê
Press in on the locking latches on both Eas
yClick rails (1) to disengage the
locking mec
hanism.
Ê
Carefully pull the front panel module out of i
ts ba
y (2).
V
CAUT
ION!
Ensure that none of the cables are strained or damaged!
375
377
