TX140 S1 Upgrade and Maintenance Manual 137
Power supply
6.2.4 Removing the standard power supply unit
Ê Remove the standard PSU as described in section "Removing the standard
power supply unit" on page 128.
6.2.5 Installing the PSU cage

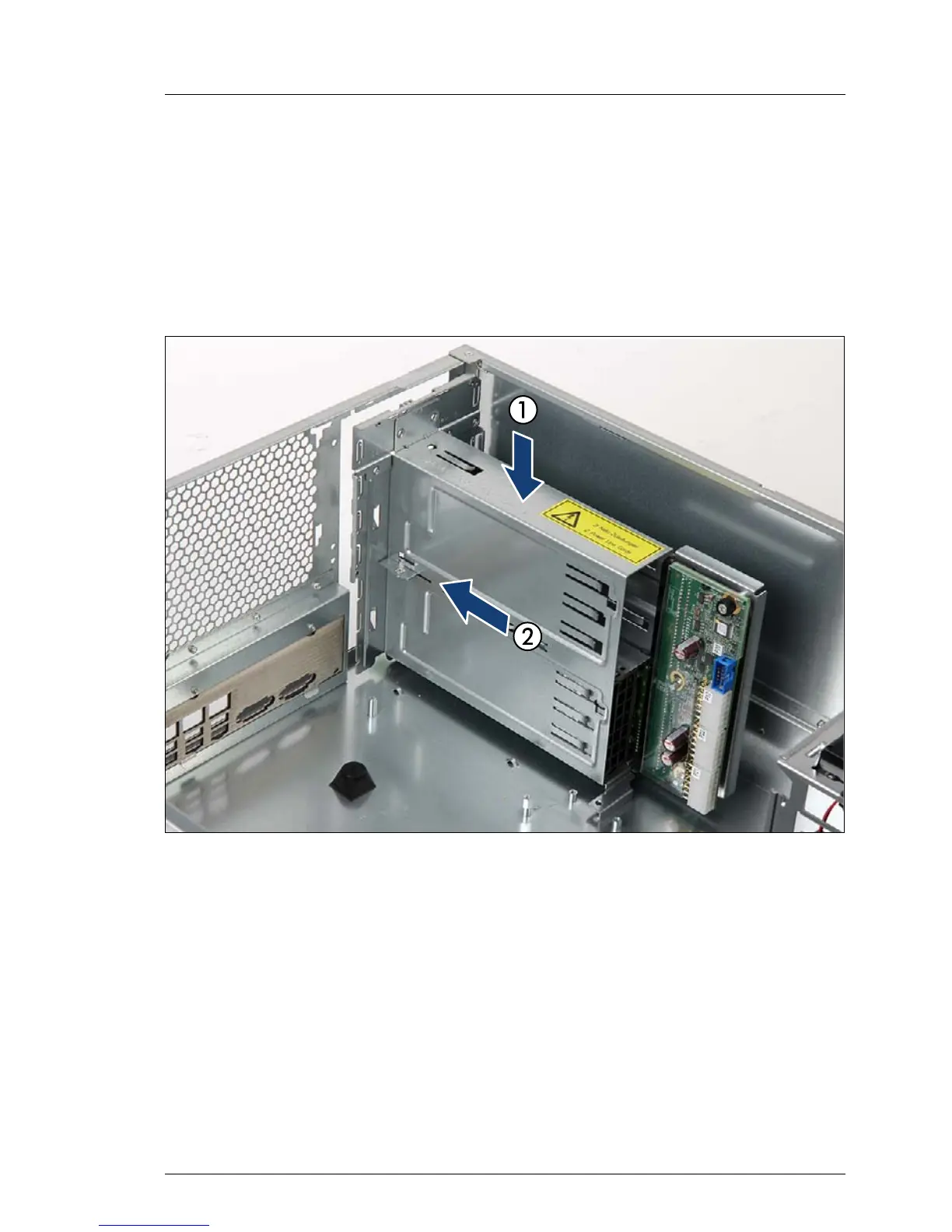

Figure 49: Installing the PSU cage
Ê Insert the PSU cage into the chassis (1).
Ê Slide the new PSU cage towards the rear of the chassis (2).
