TX140 S1
Upgrade and Maintenance Manual
403
Front panel and ext
ernal conn
ectors
13.2.2.4
Removing
the front L
AN connector

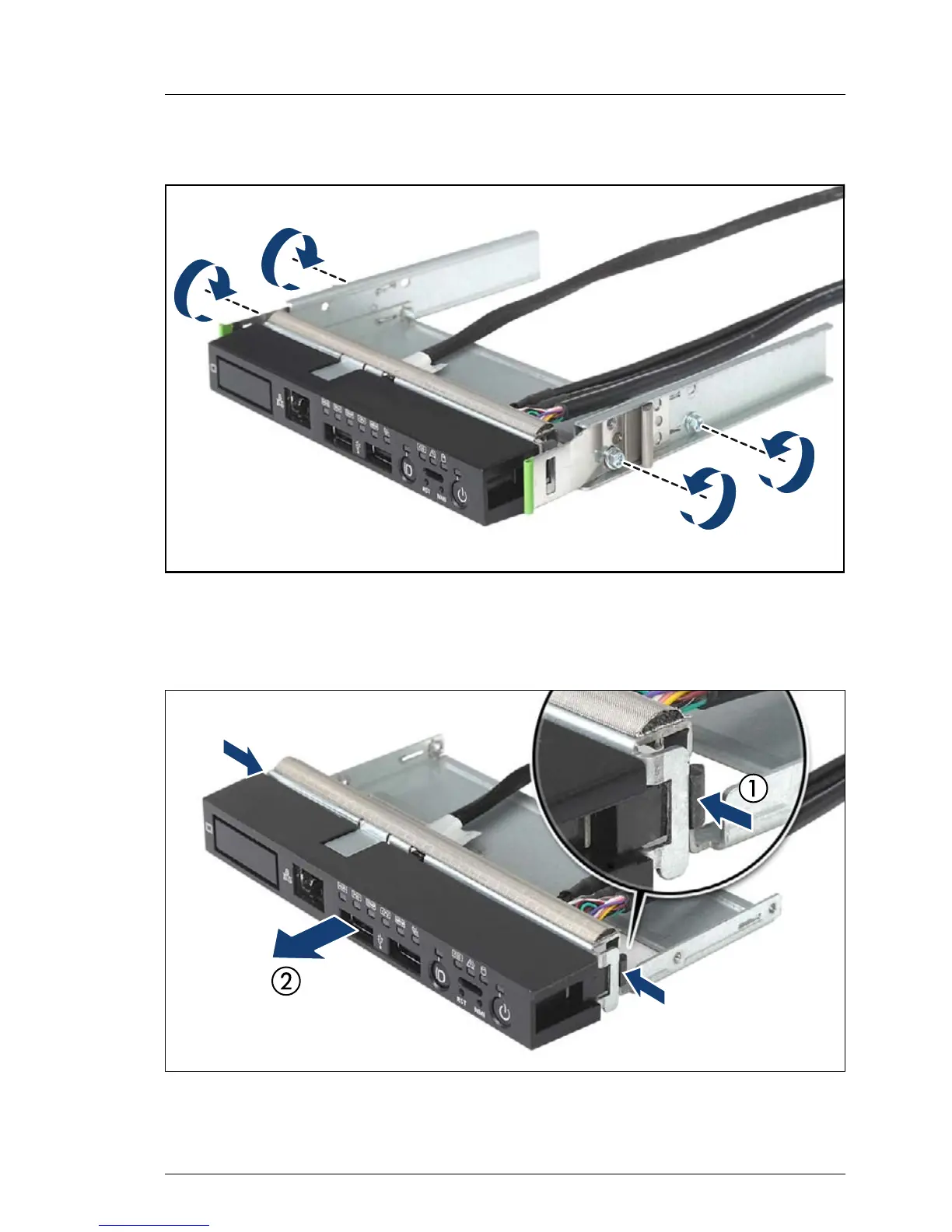

Figure 254: Re
moving Eas
yClick rails from
the front panel module
Ê
Remove two s
crews from each s
ide of the front panel module to detach the
EasyCl
ick r
ails.
Figure 255: Removing the front p
anel cover (A)
402
404
