402 Upgrade and Maintenance Manual TX140 S1
Front panel and external connectors

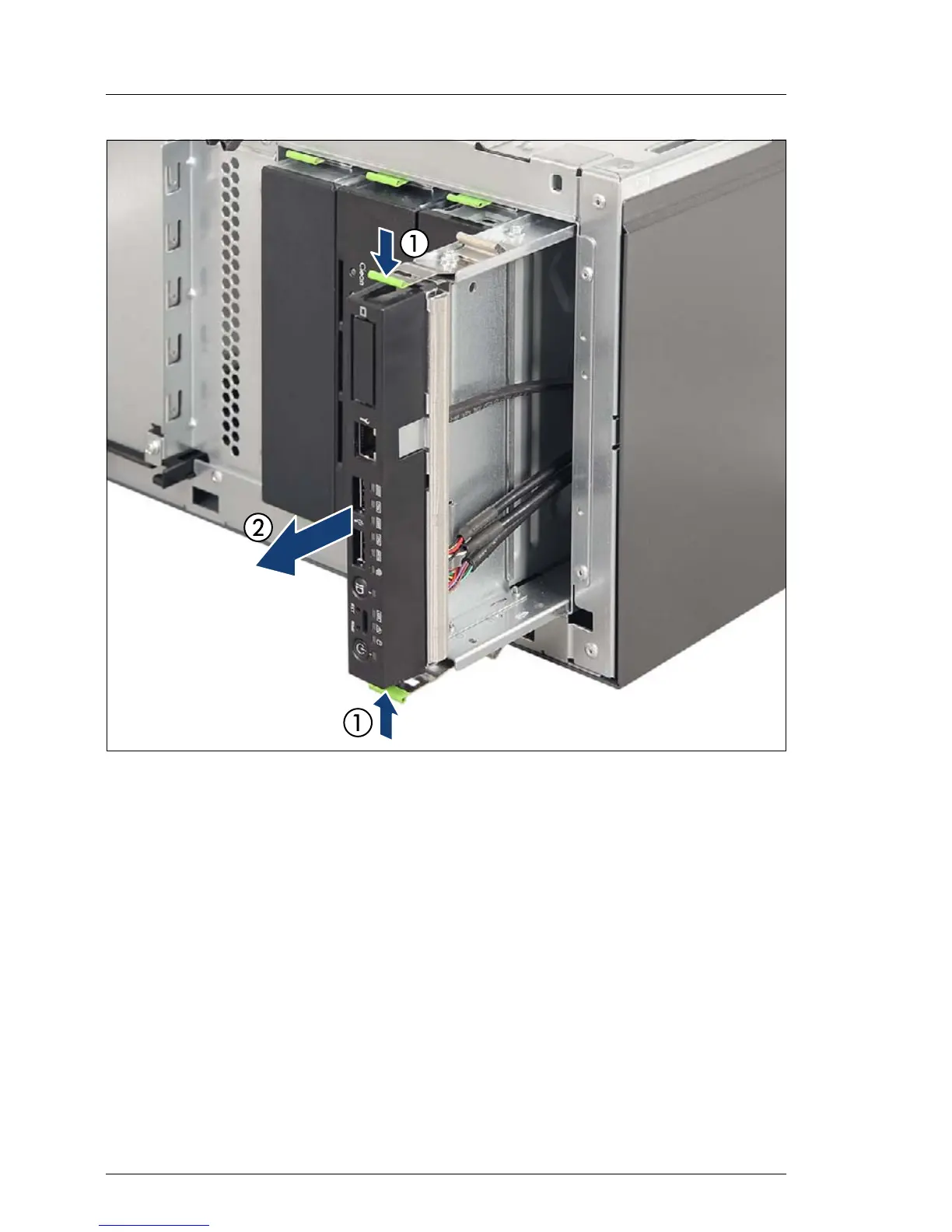

Figure 253: Removintg the front panel module
Ê Press in on the locking latches on both EasyClick rails (1) to disengage the
locking mechanism.
Ê Carefully pull the front panel module out of its bay (2).
V CAUTION!
Ensure that none of the cables are strained or damaged!
