140 Upgrade and Maintenance Manual TX140 S1
Power supply
6.2.6 Connecting power cables

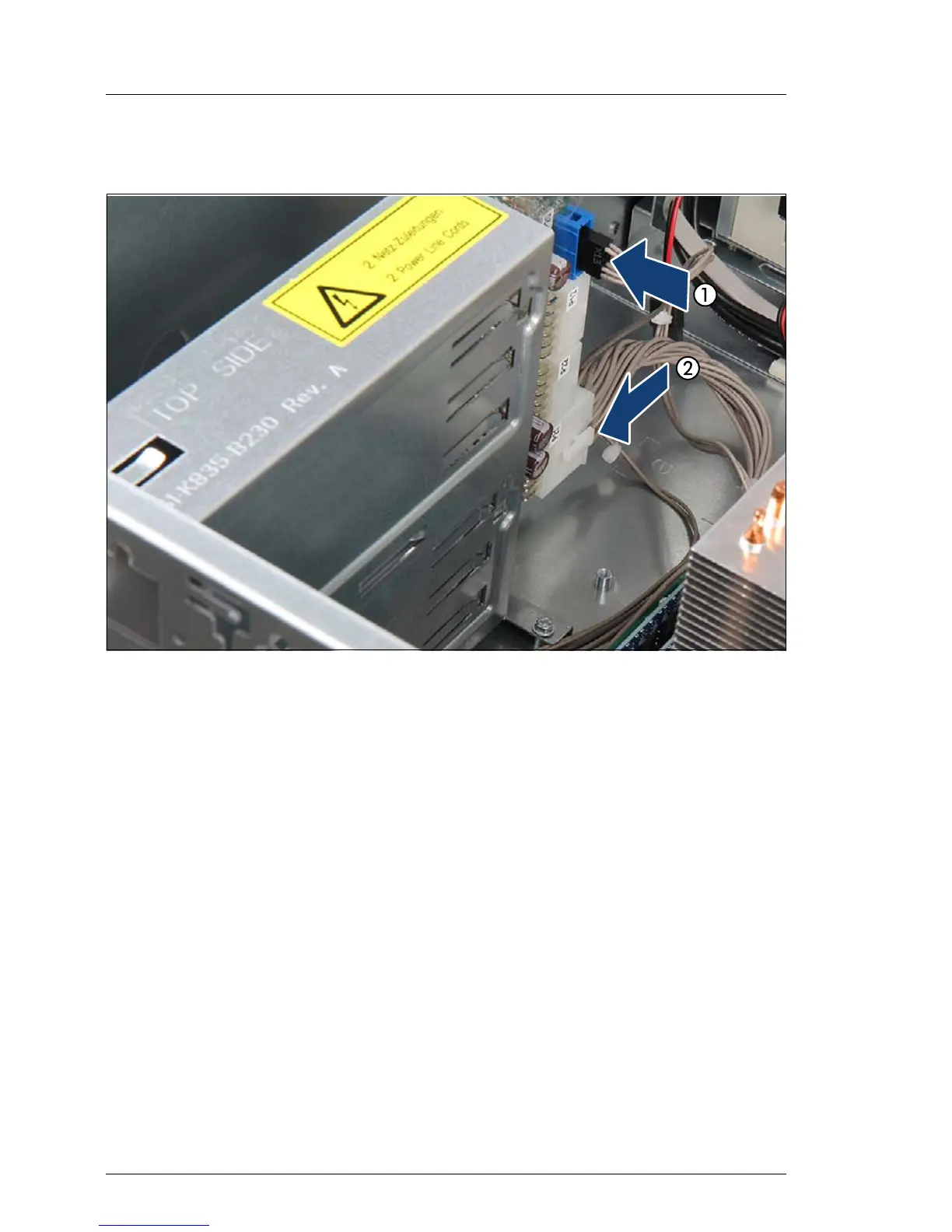

Figure 52: Connecting power cables to the power distribution board
Ê Connect the black power connector to connector X13/P20 on the power
distribution board (1).
Ê Connect power connector X10 to connector P21 on the power distribution
board (2).
