TX140 S1 Upgrade and Maintenance Manual 423
System board and components
Ê Remove the AC power cord from the cable tie and disconnect it from the
system as described in section "Disconnecting power cords" on page 63.
Ê When working on a rack-mounted server, extend it out of the rack as
described in section "Extending the server out of the rack" on page 65.
If further required, remove the server from the rack as described in section
"Removing the server from the rack" on page 66.
Ê Open the side / top cover as described in section "Removing the top cover"
on page 67 (rack server) or "Removing the side cover" on page 71 (tower
server).
14.2.1.3 Installing the UFM board

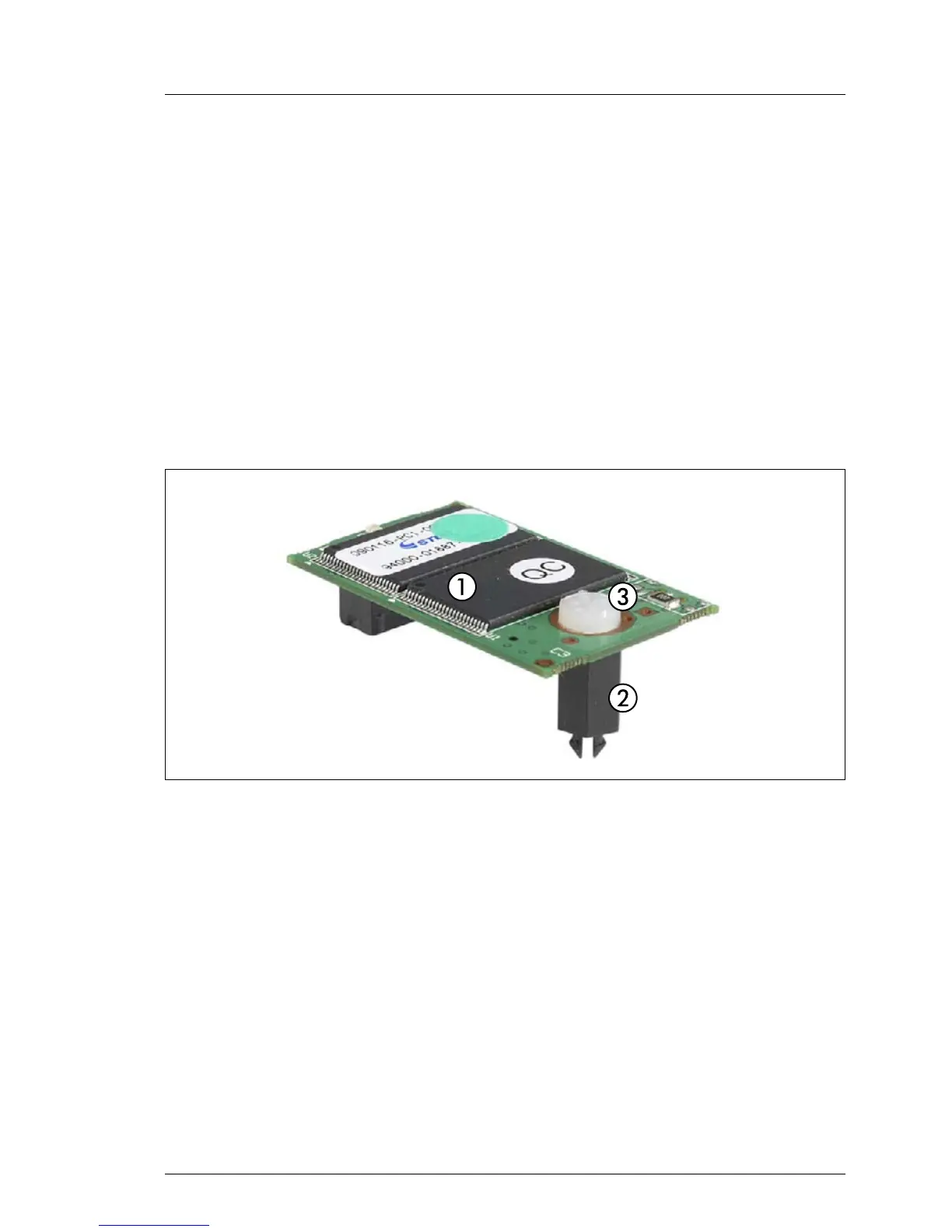

Figure 268: UFM kit
Pre-assembled UFM flash module kit (S26361-F3514-V3):
1 2 GB UFM SLC
A3C40104433
2 UFM spacer
A3C40109081
3 UFM nylon screw
A3C40109082
