424 Upgrade and Maintenance Manual TX140 S1
System board and components

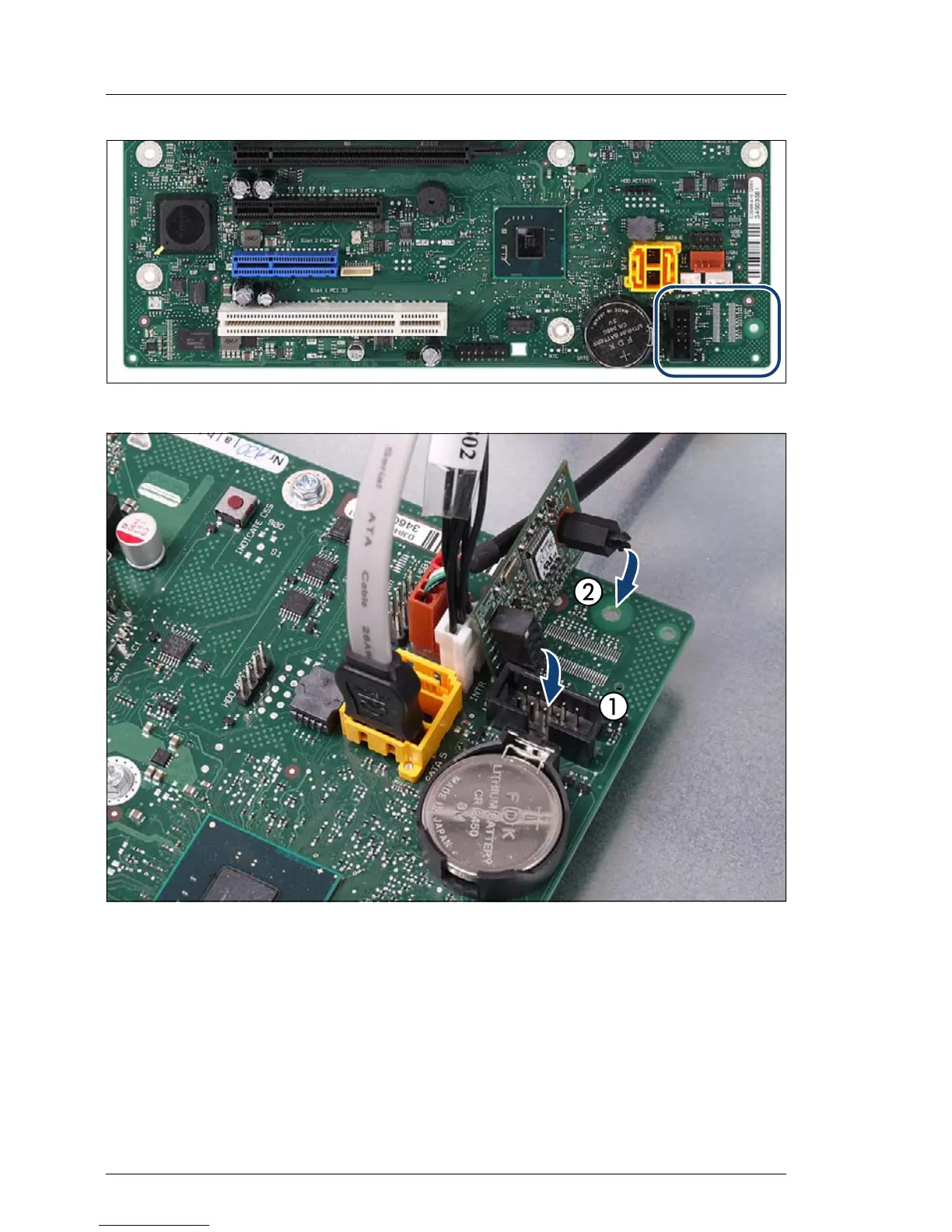

Figure 269: UFM mounting location
Figure 270: UFM mounting location (detail)
UFM mounting location on the system board:
1 UFM connector
2 Cut-out for UFM spacer
