218 Upgrade and Maintenance Manual TX140 S1
System fan and air duct
8.2.4 Installing the fan

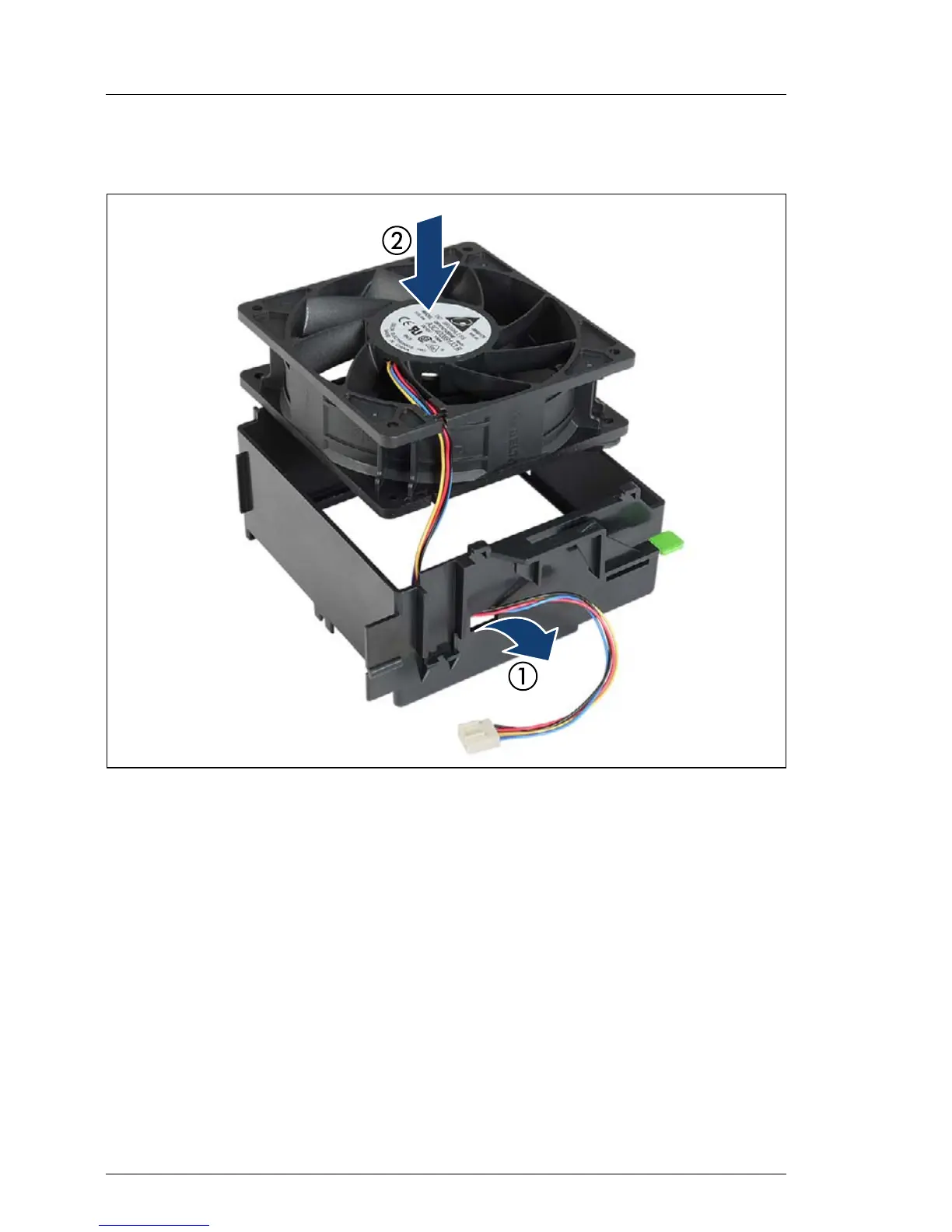

Figure 104: Installing the fan in the fan holder
Ê Thread the fan cable connector through the cable recess on the fan holder
as shown (1).
Ê Lower the fan into the fan holder as shown (2).
