280 Upgrade and Maintenance Manual TX140 S1
Expansion cards and backup units
9.4.1.4 Network adapter D2745

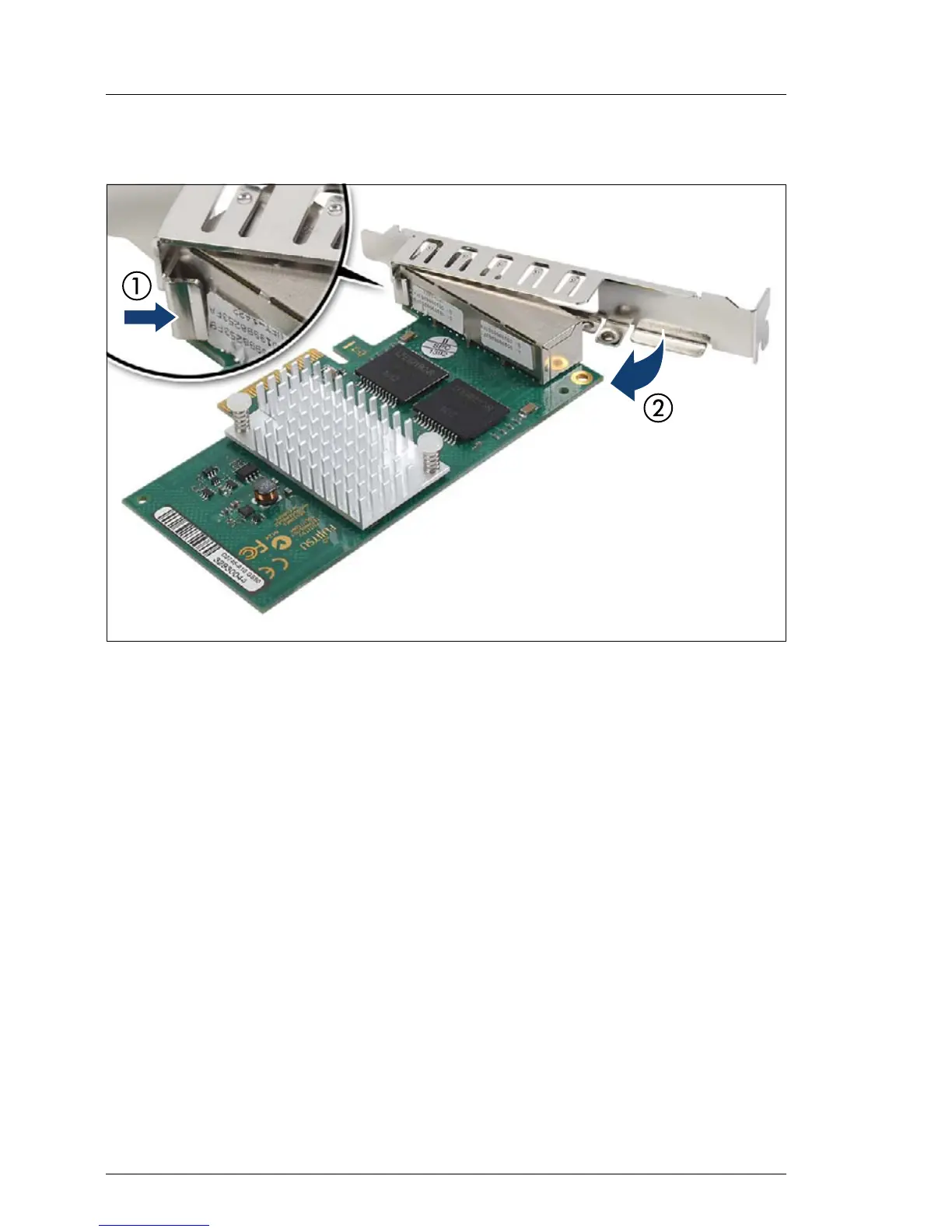

Figure 147: Network adapter D2745 - Mounting the slot bracket (A)
Ê Hinge the slot bracket to the plug shell as shown (1).
Ê Fold the slot bracket towards the controller until the threaded mounting tab
is aligned with the screw hole on the controller (2).
