208 Upgrade and Maintenance Manual TX140 S1
System fan and air duct
8.1.3 Removing the fan module

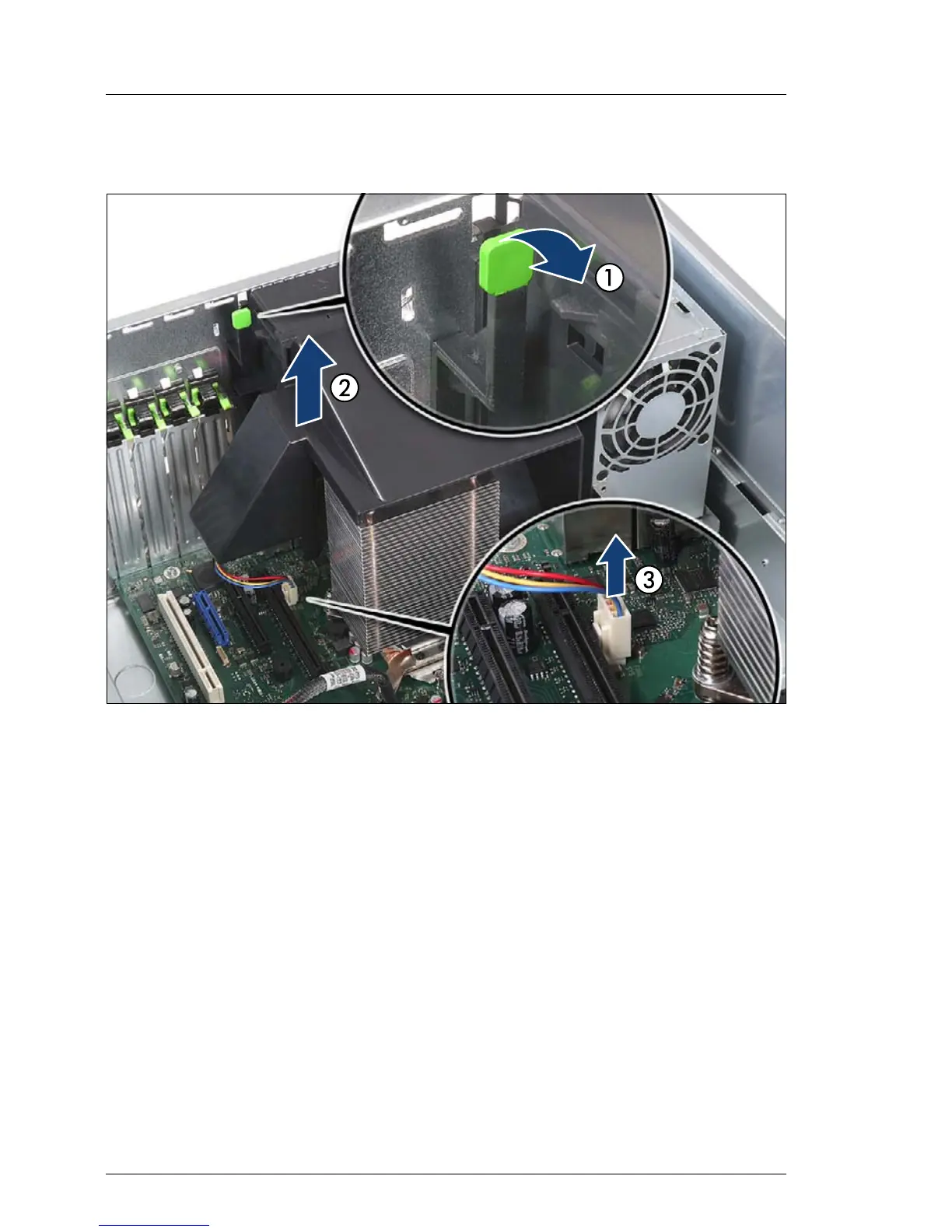

Figure 96: Removing the fan module
Ê Pull the locking lever (1) while slightly lifting up the fan module to disengage
the retaining brackets on the server rear.
Ê Carefully lift up the fan module until the fan cable connector is accessible (2).
V CAUTION!
Ensure not to strain the fan cable!
Ê Disconnect the fan cable from system board connector FAN1 SYS (3).
Ê Lift the fan module out of the chassis.
Ê Replace the defective fan as described in section "Replacing the fan in the
fan module" on page 212.
