TX140 S1 Upgrade and Maintenance Manual 533
Cabling
16.5.3.2 Installing SAS / SATA backplane cables

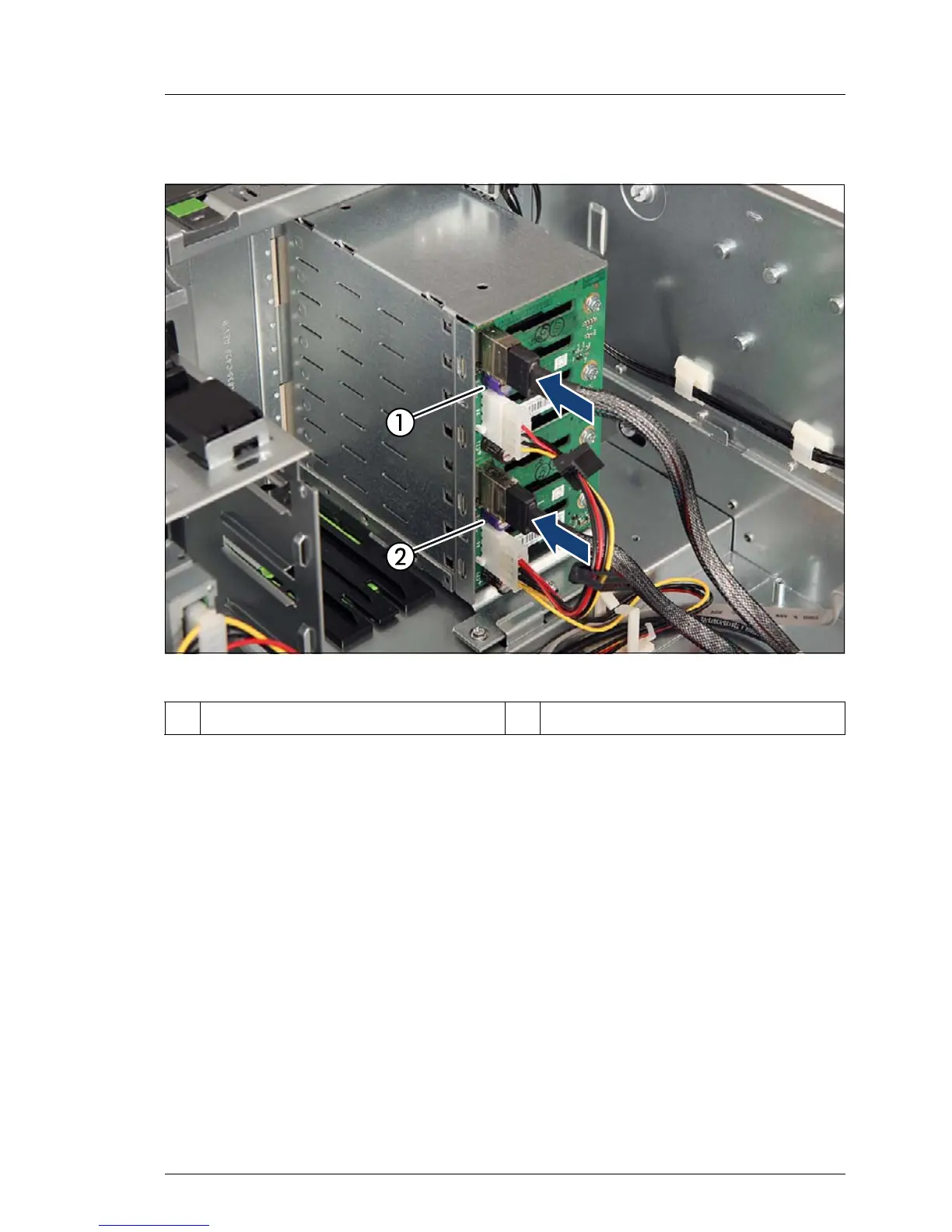

Figure 363: Installing the SAS / SATA cables (2.5-inch HDD model) (A)
Ê Reconnect the new SAS / SATA cable to the 2.5-inch HDD SAS / SATA
backplane:
SAS / SATA cable connected to SAS controller connector MLC1 to
primary backplane connectors X1
SAS / SATA cable connected to SAS controller connector MLC2 to
secondary backplane connectors X1
1 primary HDD backplane 2 secondary HDD backplane
