Cabling

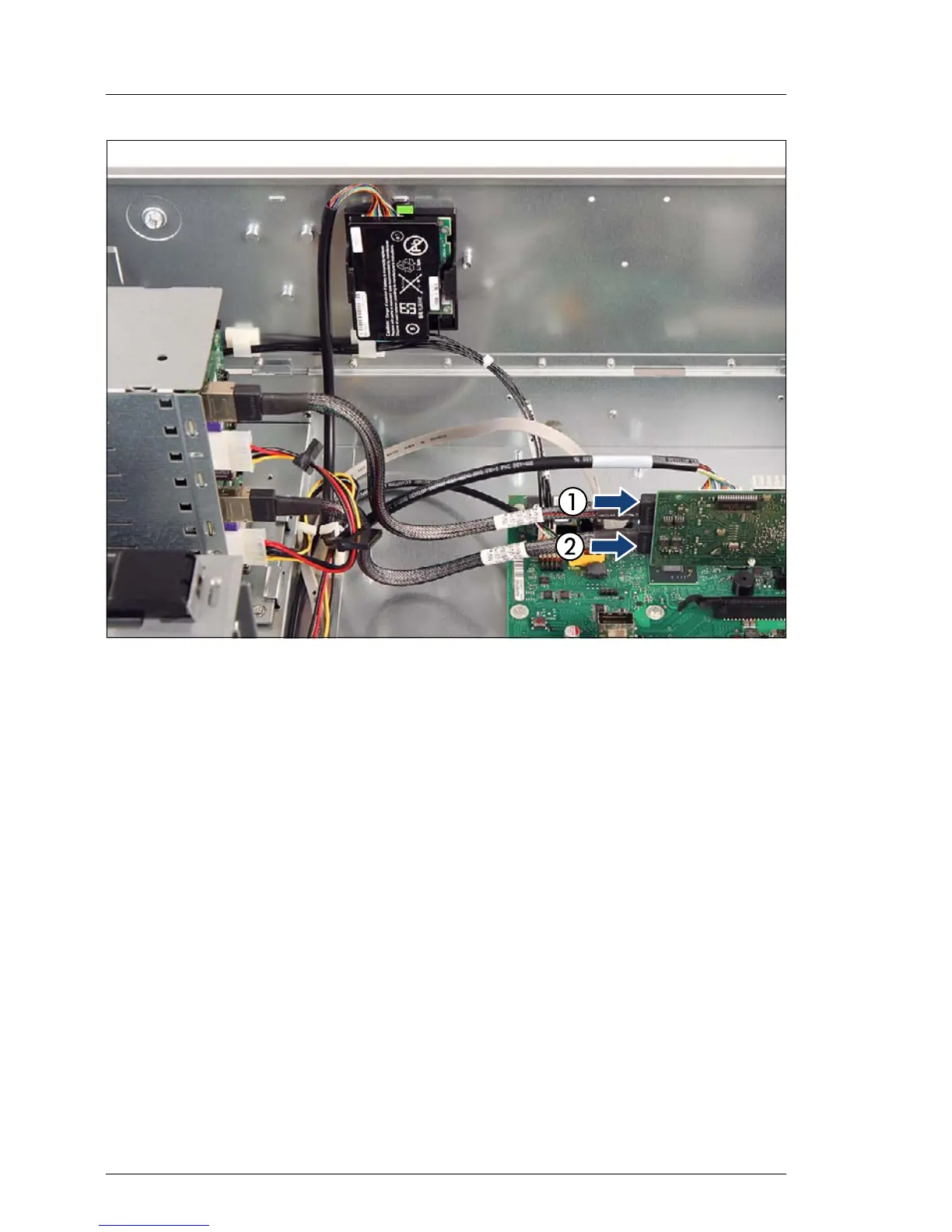

Figure 364: Installing the SAS / SATA cables (2.5-inch HDD model) (B)
Ê Reconnect the new SAS / SATA cable to the SAS controller:
– SAS / SATA cable from the primary SAS / SATA backplane to SAS
controller connector MLC1 (1)
– SAS / SATA cable from the secondary SAS / SATA backplane to SAS
controller connector MLC2 (2)
