84
Upgrade and Maintenanc
e Manual
TX140
S1
Basic hardware procedures
4.6.2.2
Inst
alling th
e HDD bay cover

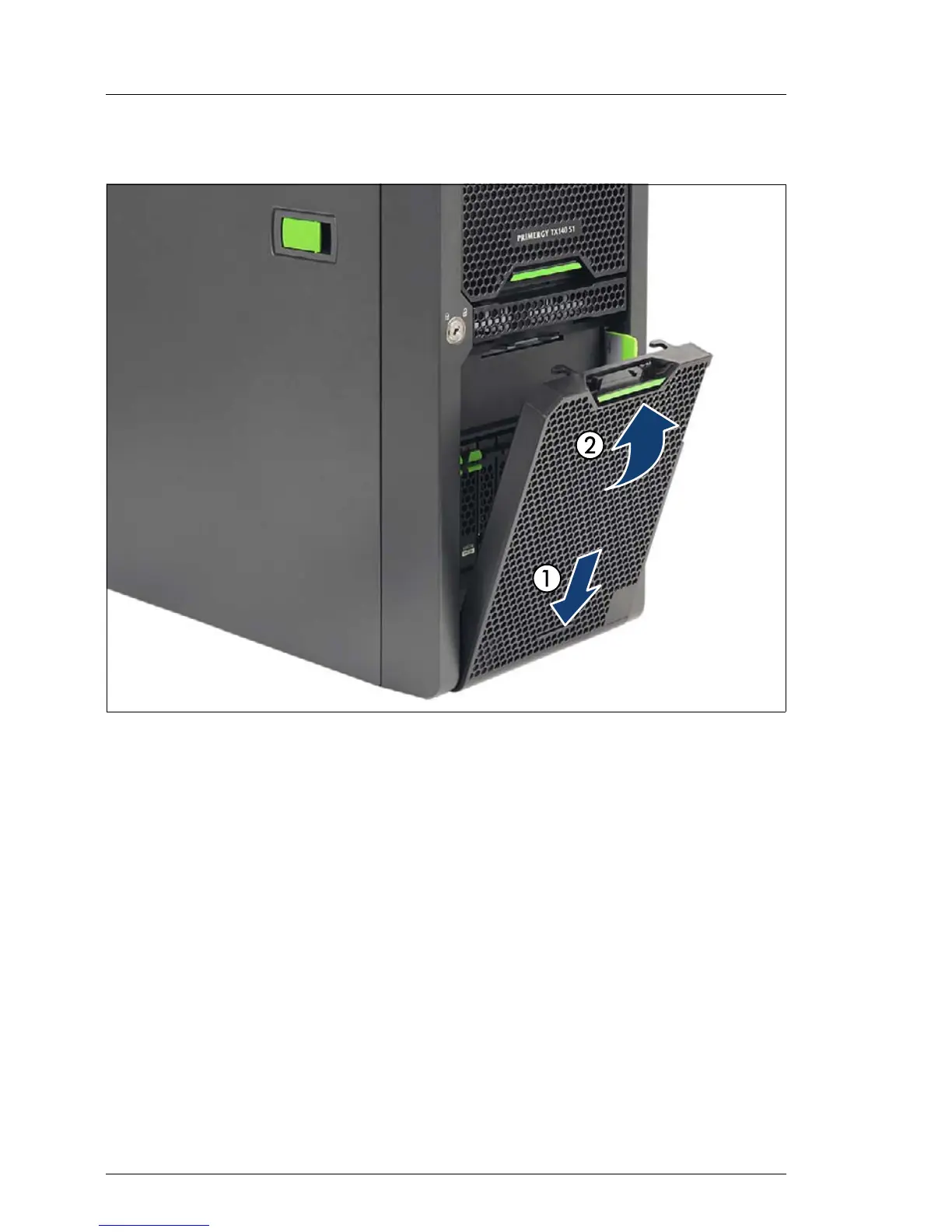

Figure 31:
Instal
ling the HDD bay cover
Ê
Insert the HDD bay cover
into the front cover as shown (1).
Ê
Fold
in the HDD bay cover until it lock in place (2).
83
85
