TX140 S1 Upgrade and Maintenance Manual 535
Cabling
16.5.4 3.5-inch HDD model
16.5.4.1 Removing the SAS / SATA backplane cable

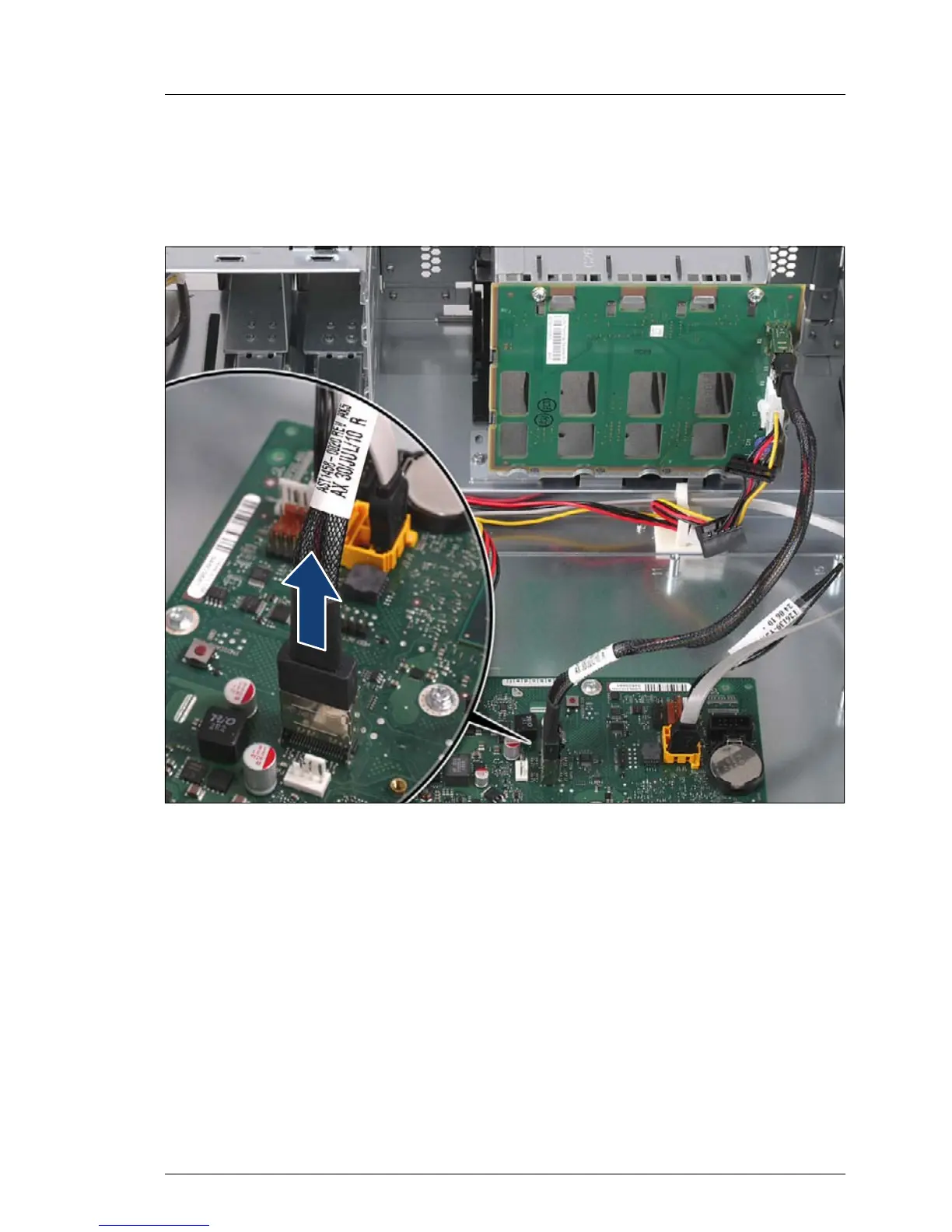

Figure 365: Removing the SAS / SATA cable (3.5-inch HDD model) (A)
Ê Disconnect the SAS / SATA cable from system board connector SATA
MLC1.
