536 Upgrade and Maintenance Manual TX140 S1
Cabling

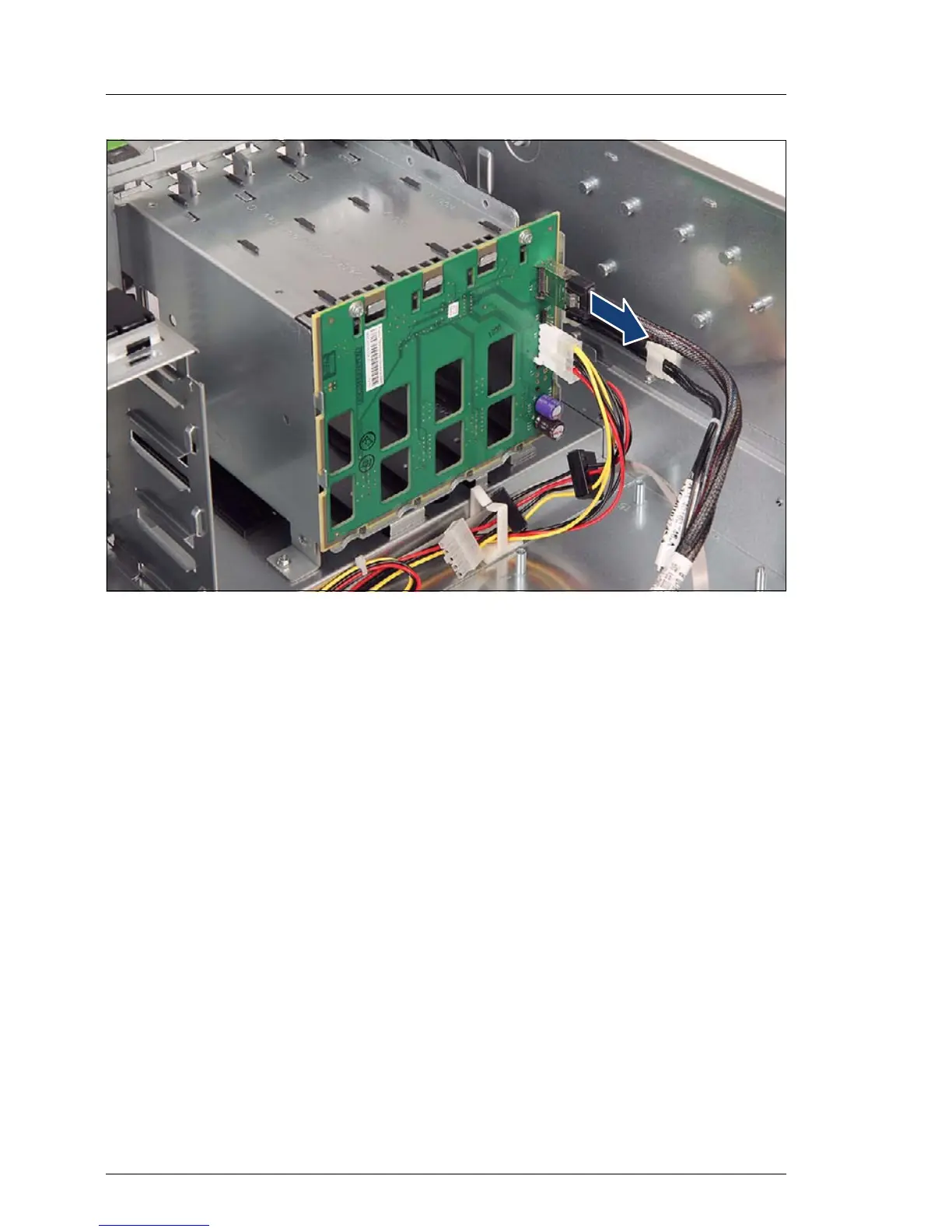

Figure 366: Removing the SAS / SATA cable (3.5-inch HDD model) (B)
Ê Disconnect the SAS / SATA cable from the 3.5-inch HDD SAS / SATA
backplane connector X1.
