TX140 S1 Upgrade and Maintenance Manual 219
System fan and air duct

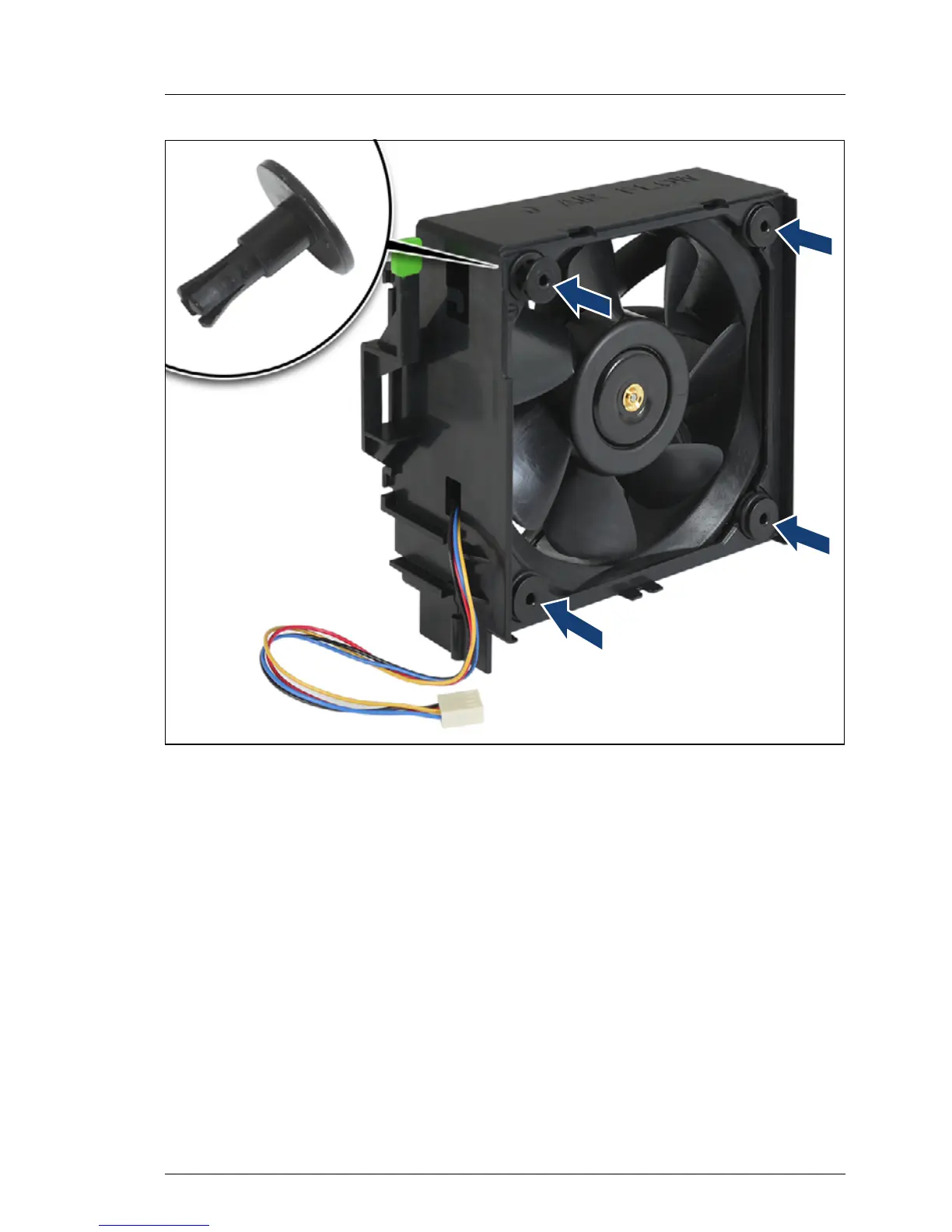

Figure 105: Inserting the snap rivets
Ê Insert and push the four snap rivets (see close-up) through the rubber
bushings on the fan holder until they properly engage with the fan.
