Front panel and external connectors
Ê Press in on the locking latches on the front panel cover (1) to disengage the
locking mechanism.
Ê Pull off the front panel cover (2).

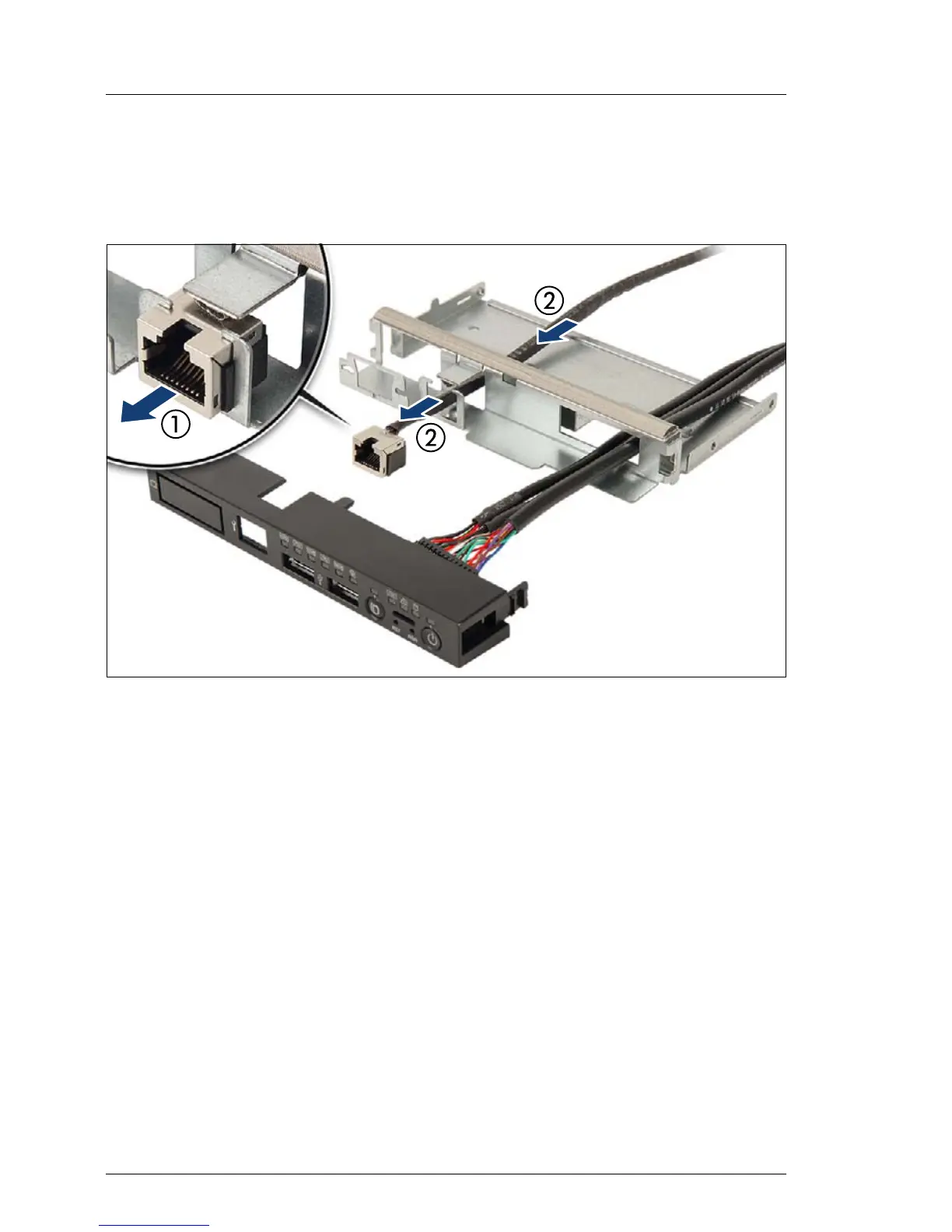

Figure 256: Mounting the front LAN connector
Ê Carefully unlatch the front LAN cable connector from the mounting bracket
(1).
Ê Pull the front LAN cable out through the mounting bracket on the front panel
frame and remove it (2).
