TX140 S1
Upgrade and Maintenance Manual
385
Front panel and ext
ernal conn
ectors

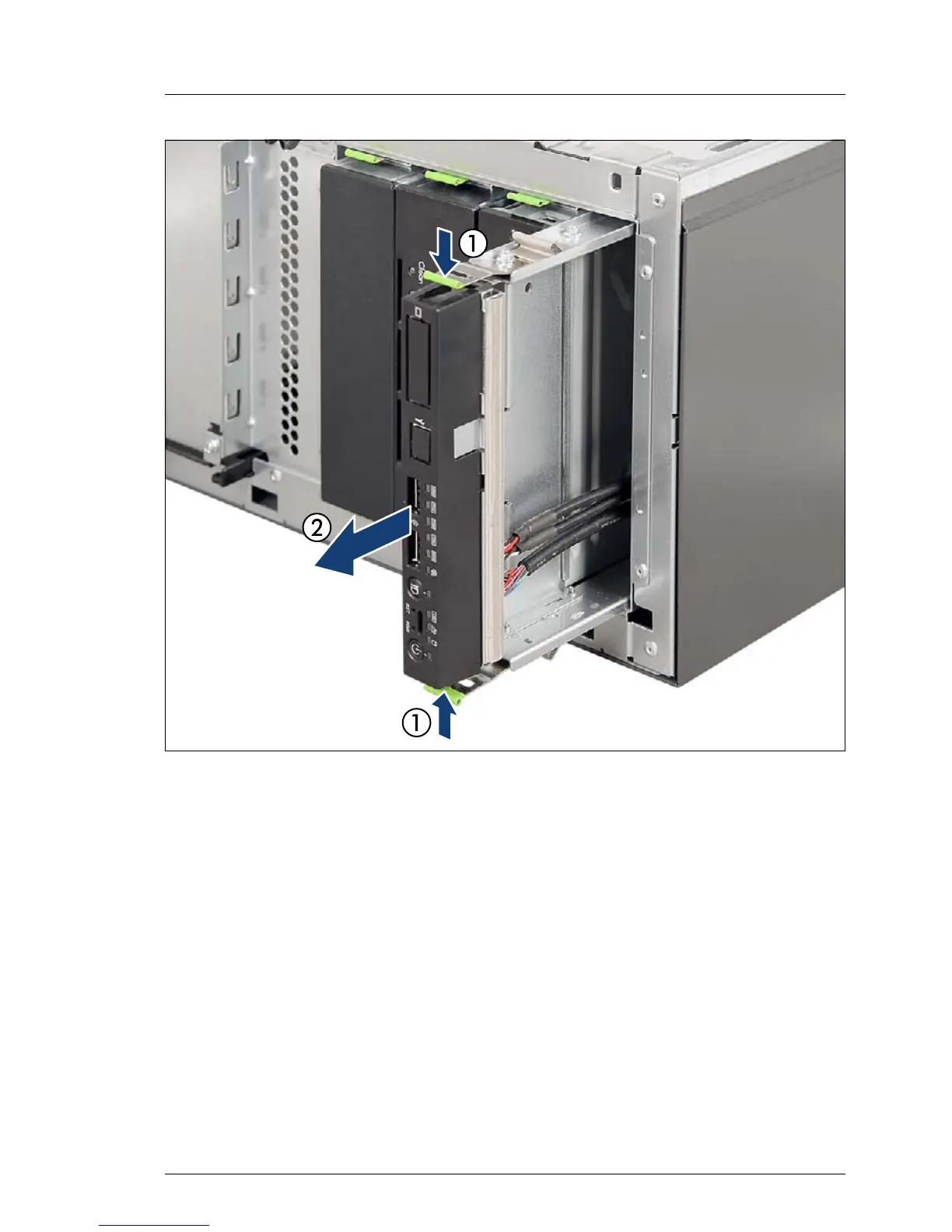

Figure 234: Removing the f
ront panel module
Ê
Press in on the locking latches on
both EasyClick rails (1) to
disengage the
locking mec
hanism.
Ê
Carefully pull the front panel m
odule out of its bay (2).
V
CAUT
ION!
Ensure that none of the cables are strained or damaged!
384
386
