250 Upgrade and Maintenance Manual TX140 S1
Expansion cards and backup units

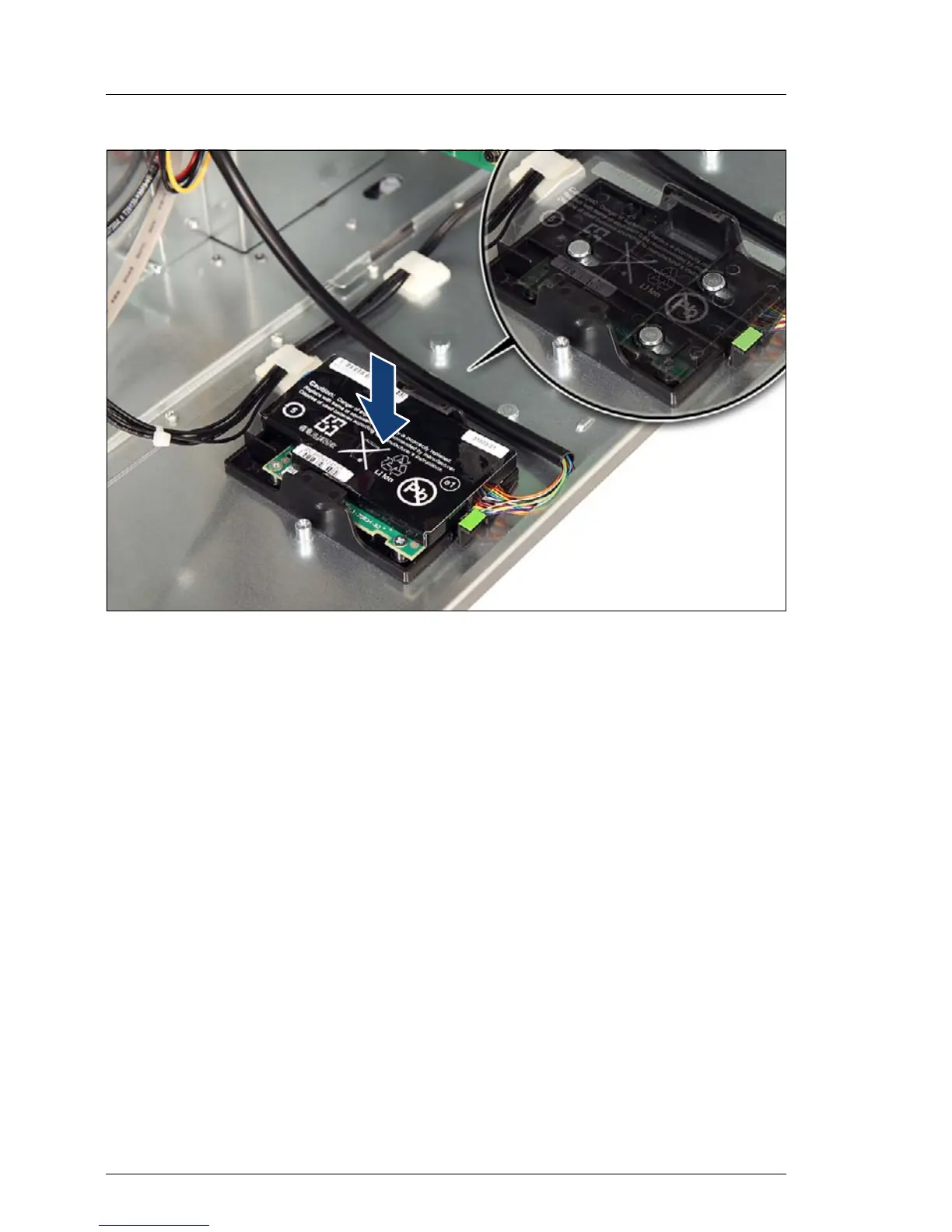

Figure 124: Installing the BBU holder (B)
Ê Insert the BBU holder into the chassis so that the three fixation bolts on the
chassis floor rest in the wide ends of the keyhole slots on the holder (see
close-up).
