TX140 S1 Upgrade and Maintenance Manual 333
Accessible drives

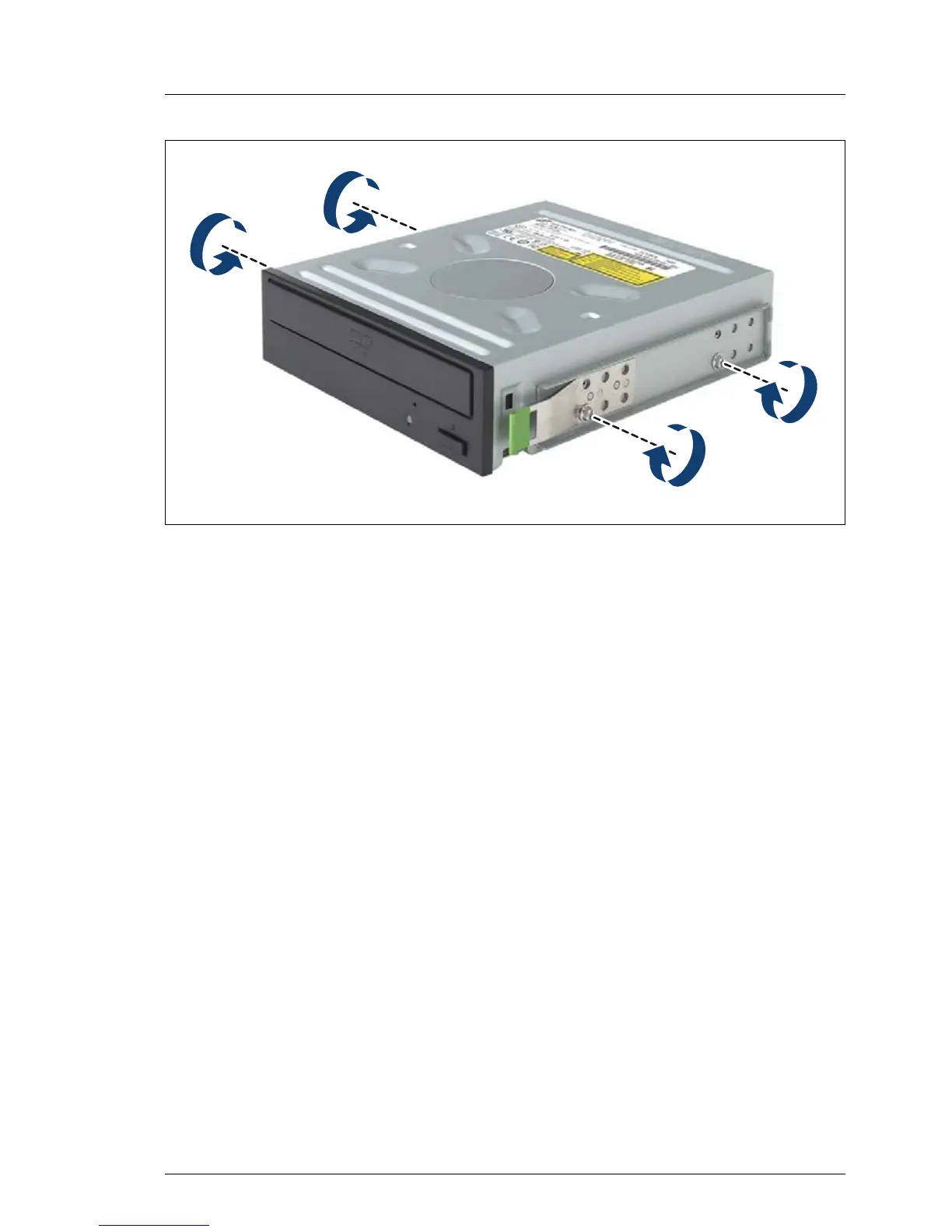

Figure 186: Attaching EasyClick rails to the optical disk drive
Ê Attach EasyClick rails on either side of the optical disk drive, each with two
M3 x 4.5 mm screws.
I – Use the first holes in the bottom row of the perforated rail as
shown.
– Use the screws which are provided with the packaging contents of
the optical disk drive.
