TX140 S1 Upgrade and Maintenance Manual 359
Accessible drives

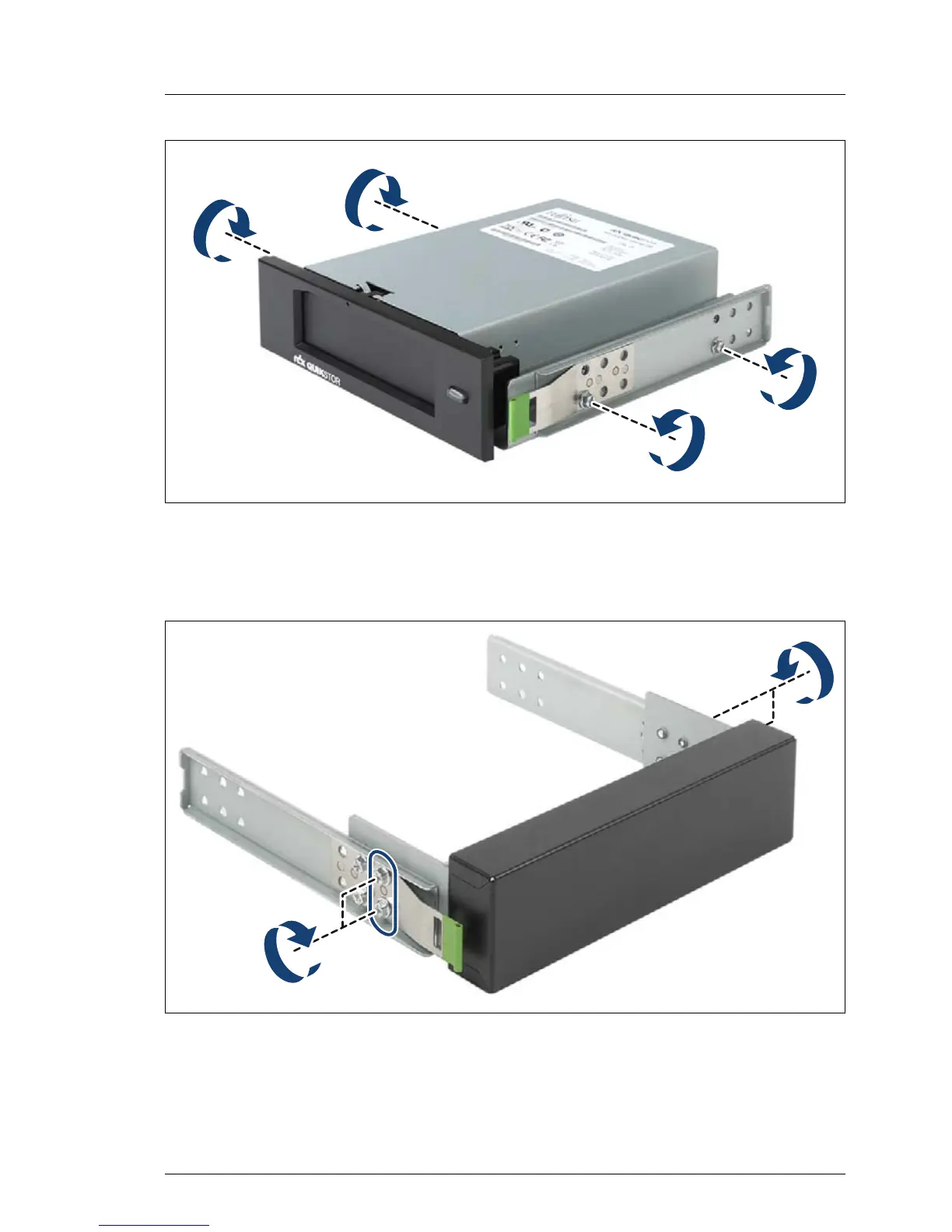

Figure 212: Removing the EasyClick rails (backup drive)
Ê Remove two screws from each side of the defective optical disk or backup
drive to detach the EasyClick rails.
Figure 213: Attaching EasyClick rails to the dummy module
