TX140 S1 Upgrade and Maintenance Manual 391
Front panel and external connectors

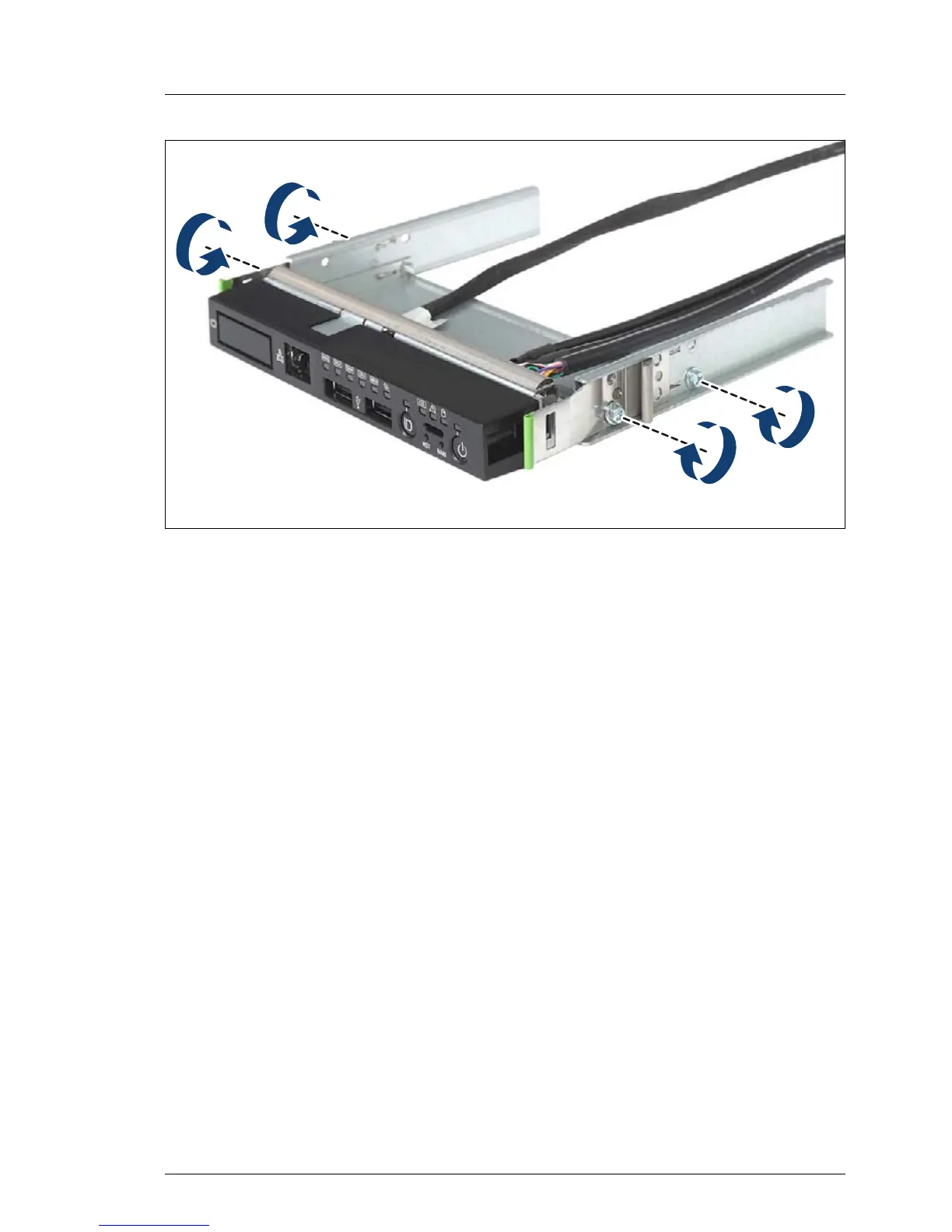

Figure 242: Mounting EasyClick on the front panel module
Ê Attach EasyClick rails on either side of the front panel module, each with two
M3 x 4.5 mm screws.
I Use the holes in the bottom row of the perforated rail as shown.
