TX140 S1 Upgrade and Maintenance Manual 483
Converting a tower server to a rack serve
r

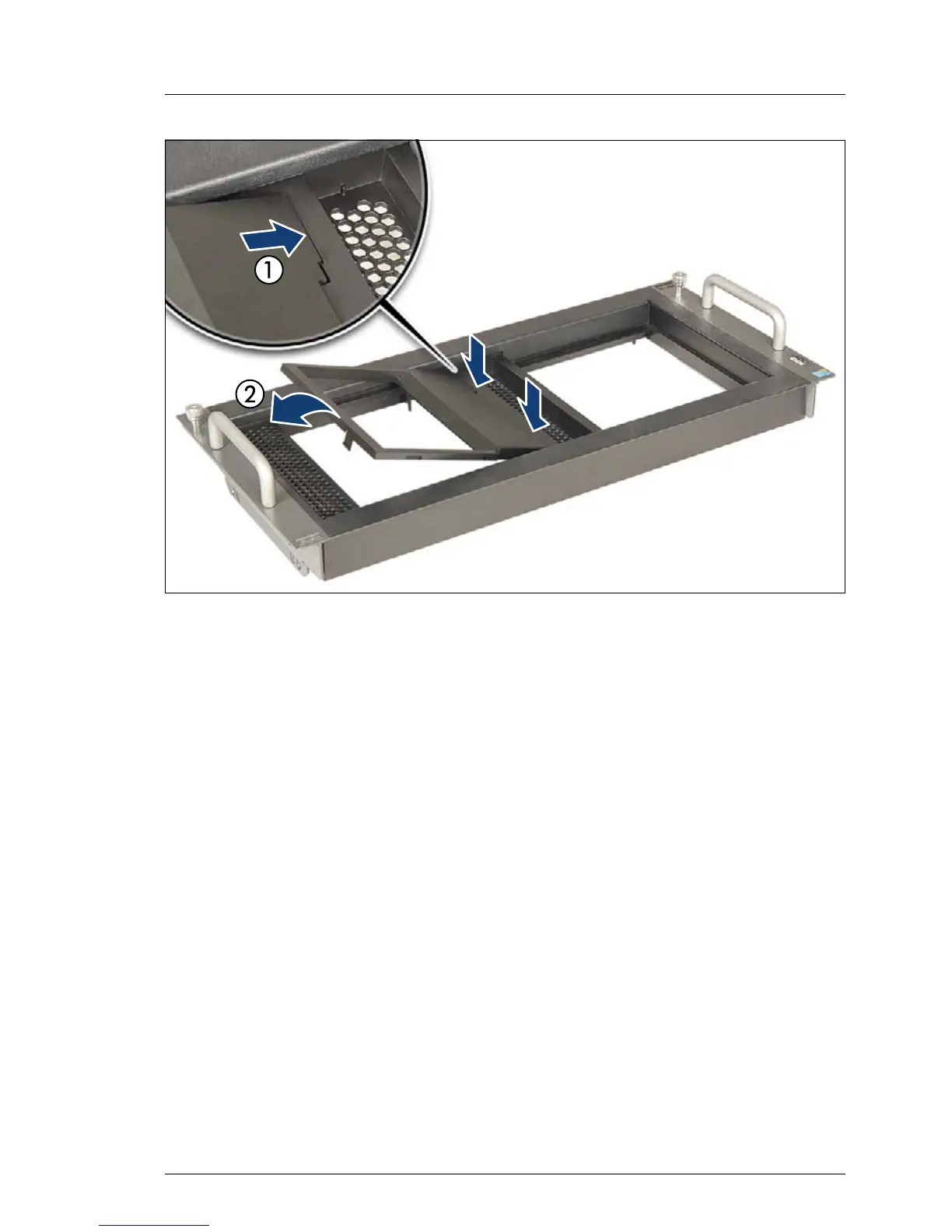

Figure 314: Installing a HDD / SSD front panel frame
Ê Join the two lugs on the front panel cover with the right inner edge of the
HDD / SSD opening in the front rack bezel (1).
Ê Fold down the front panel frame until it snaps in place (2).
