TX140 S1
Upgrade and Maintenance Manual
477
Convertin
g a tower server to a rack serve
r

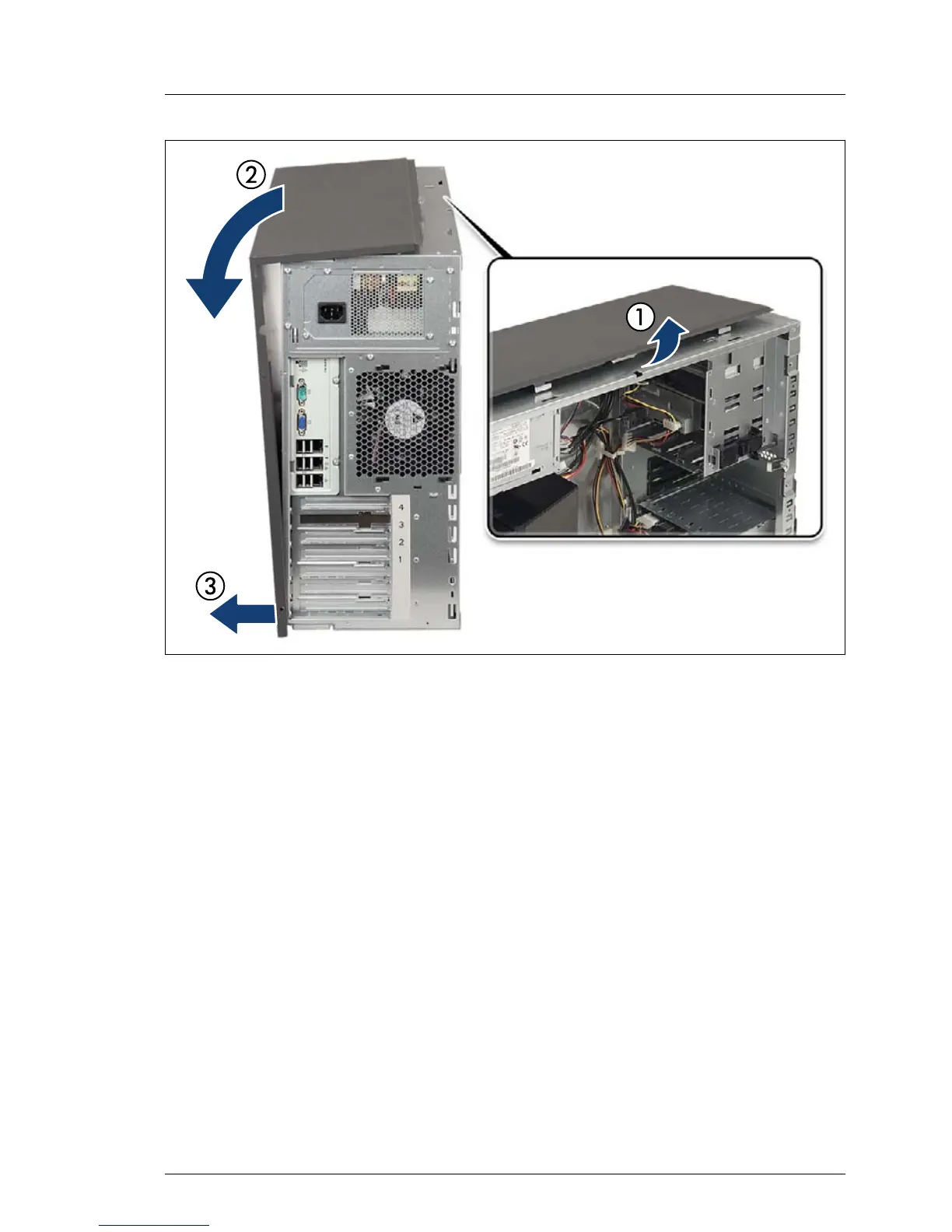

Figure 307: Re
moving the
right side cov
er (D
)
Ê
Disengage the locking latches on the right side cover from the upper edge
of the chassis (1).
Ê
Slightly fold out the right side cover (2) and disengage the lower locking
latches from the foot mounting rail
(3).
Ê
Lift off and remove
the right side cover
.
I
The right side cover is no longer required.
476
478
