476
Upgrade and Mai
ntenance Manual
TX140
S1
Converting a tower server to a rack server

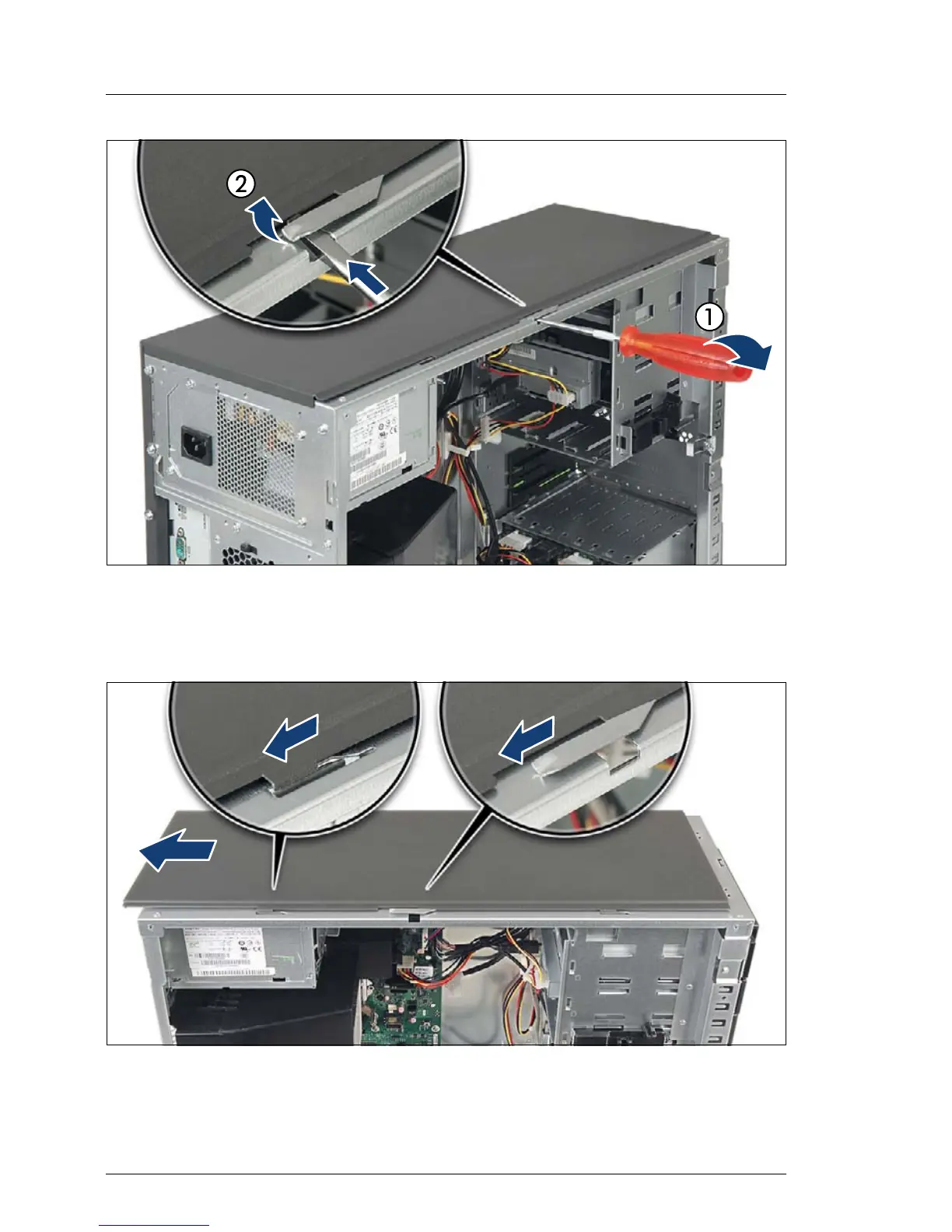

Figure 305: Removing the right side cover (B)
Ê
Using a slotted screw driver (1), slightly pry up on the locking t
ap until it
disengages (2).
Figure 306: Removing the right side cover
(C)
