166
Upgrade and Mai
ntenance Manual
TX140
S1
Hard disk drives / solid st
ate drives

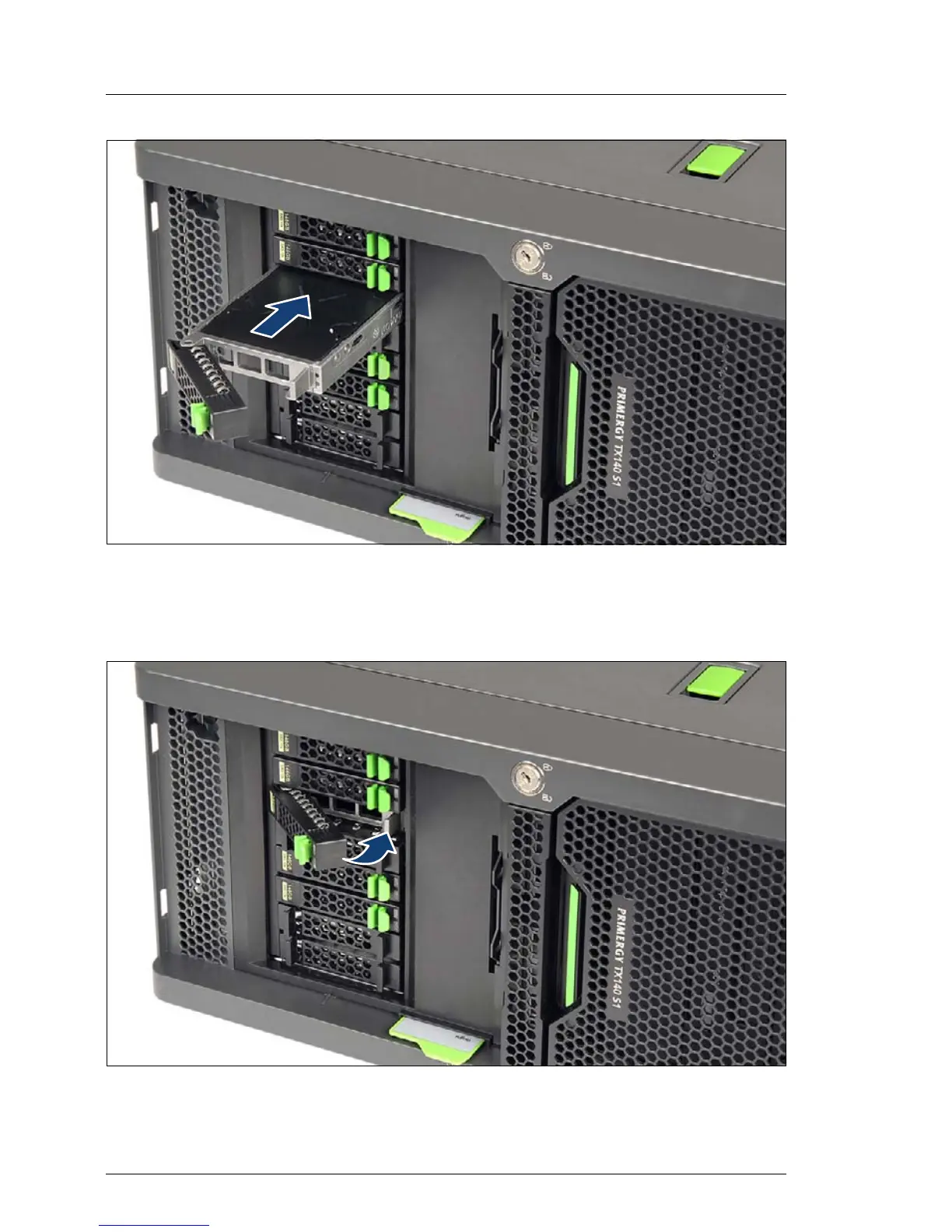

Figure 67: Insert
ing the 2.5-inch
HDD
/
SSD module
Ê
Insert the HDD module into a drive bay and carefully push back as far as it
will go.
Figure 68: Closing t
he 2.5-inch HDD
/
SSD module locking lever
Ê
Close the locking lever to lock the hard disk drive in pl
ace.
