178 Upgrade and Maintenance Manual TX140 S1
Hard disk drives / solid state drives

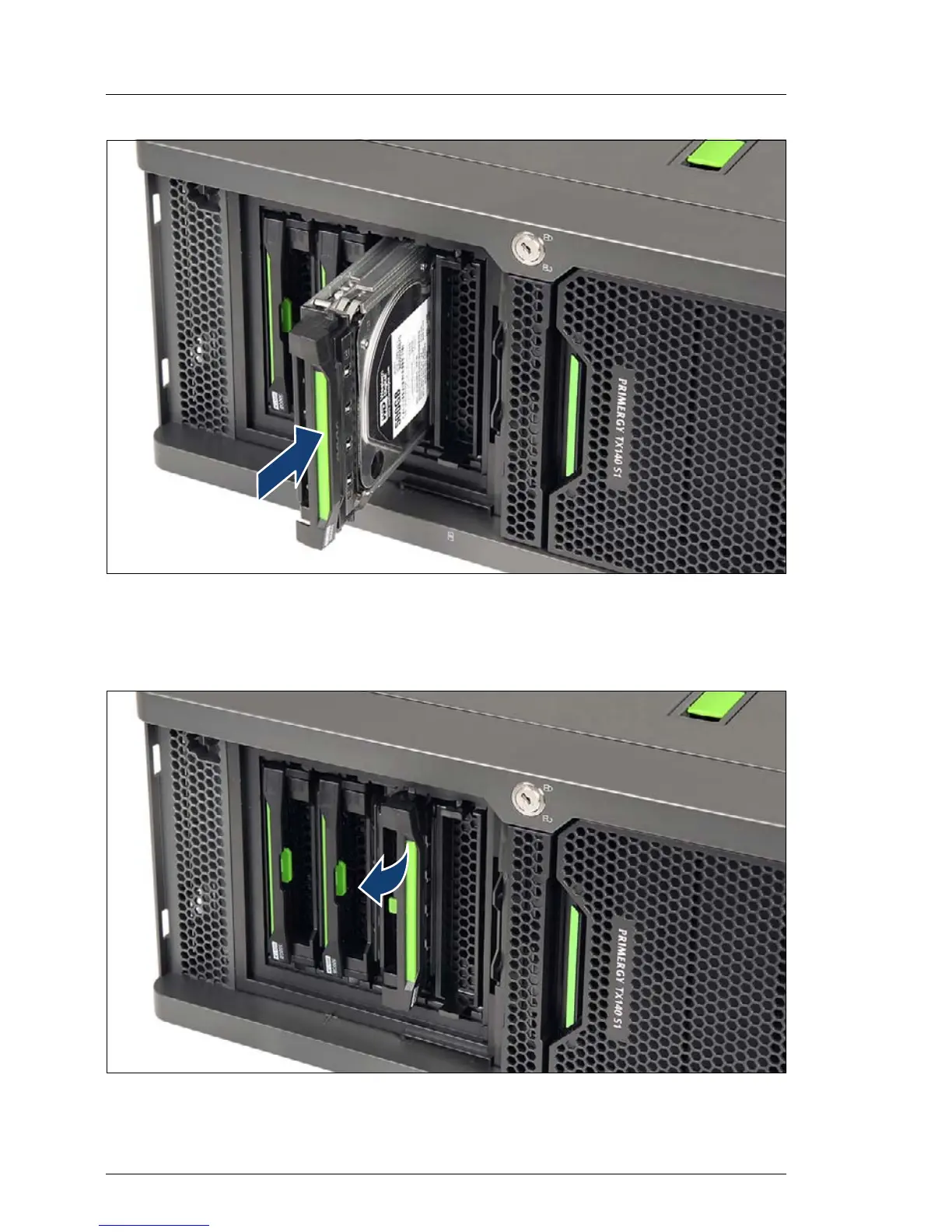

Figure 76: Inserting the 3.5-inch HDD module
Ê Insert the HDD module into a drive bay and carefully push back as far as it
will go.
Figure 77: Closing the 3.5-inch HDD module locking lever
Ê Fold down the lever to lock the HDD module in place.
