216 Upgrade and Maintenance Manual TX140 S1
System fan and air duct

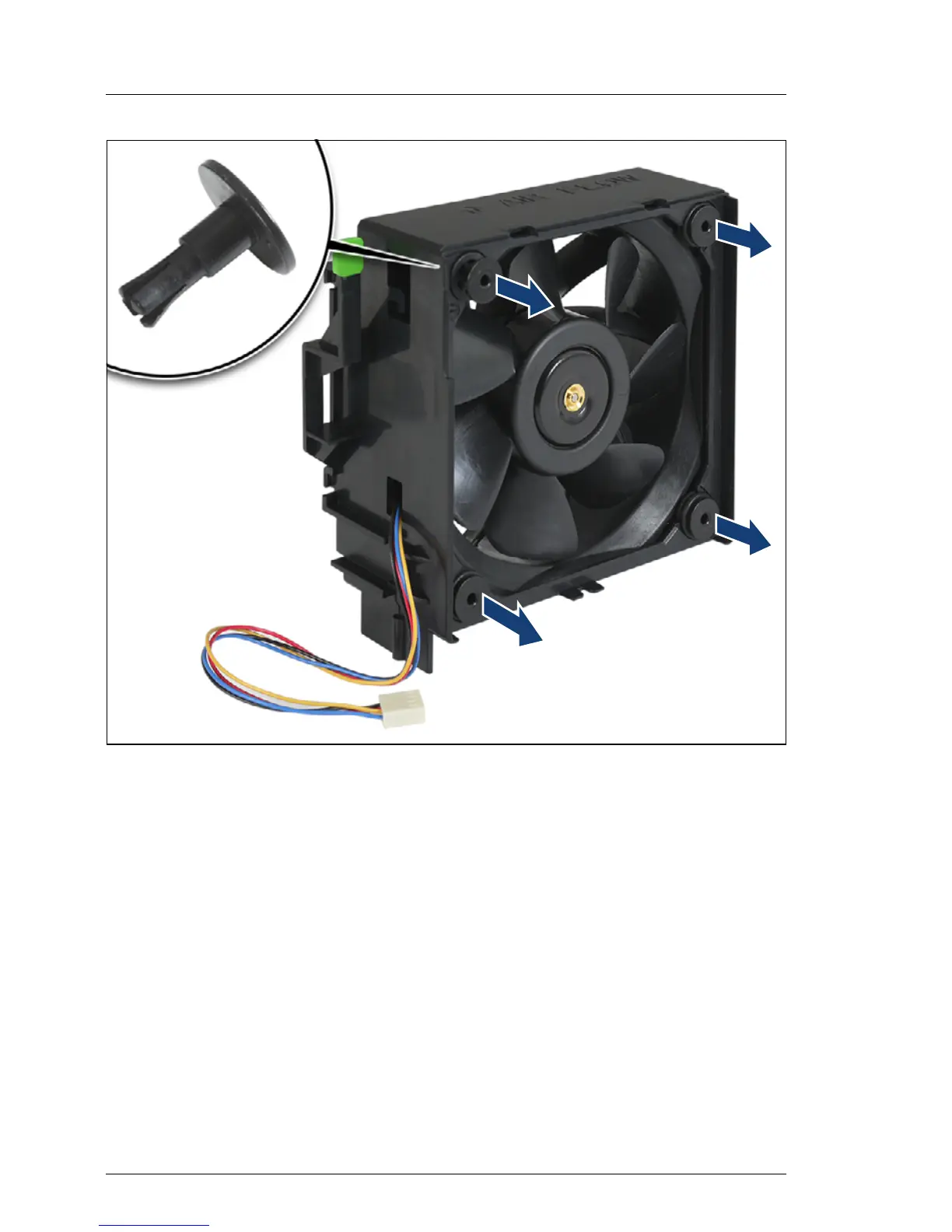

Figure 102: Removing the snap rivets
Ê Remove the four snap rivets (see close-up) from the fan holder.
