TX140 S1
Upgrade and Maintenance Manual
257
Expansion cards and back
up un
its

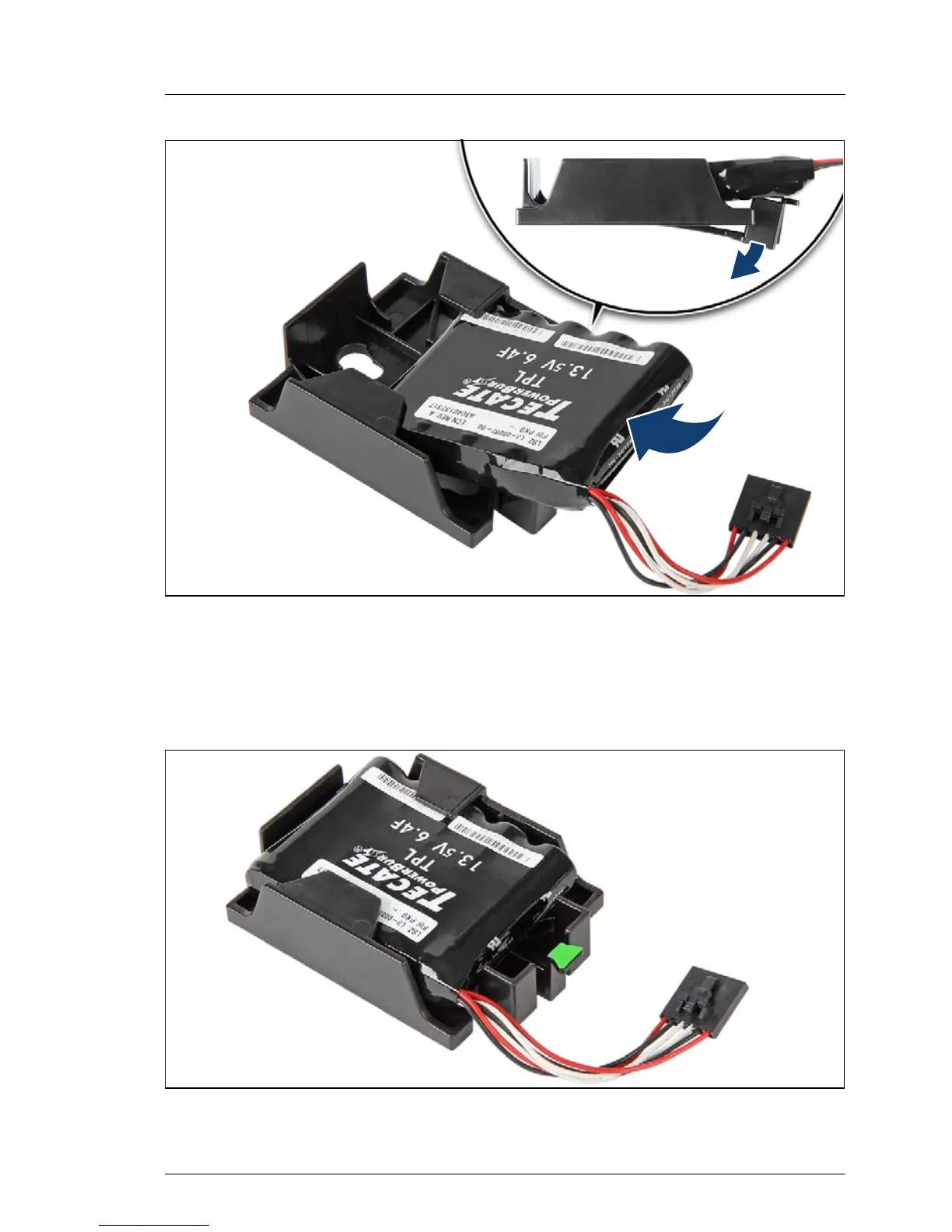

Figure 130:
Installing the FBU
in the FBU holder
(A)
Ê
At a slight angle, fit
the FBU under
both retaining brac
kets of
the FBU holder
as shown.
Ê
Push in the FBU until it locks in plac
e.
Figure 131:
Installing the FBU
in the FBU holder
(B)
256
258
