290
Upgrade and Mai
ntenance Manual
TX140
S1
Exp
ansion cards and backup un
it
s

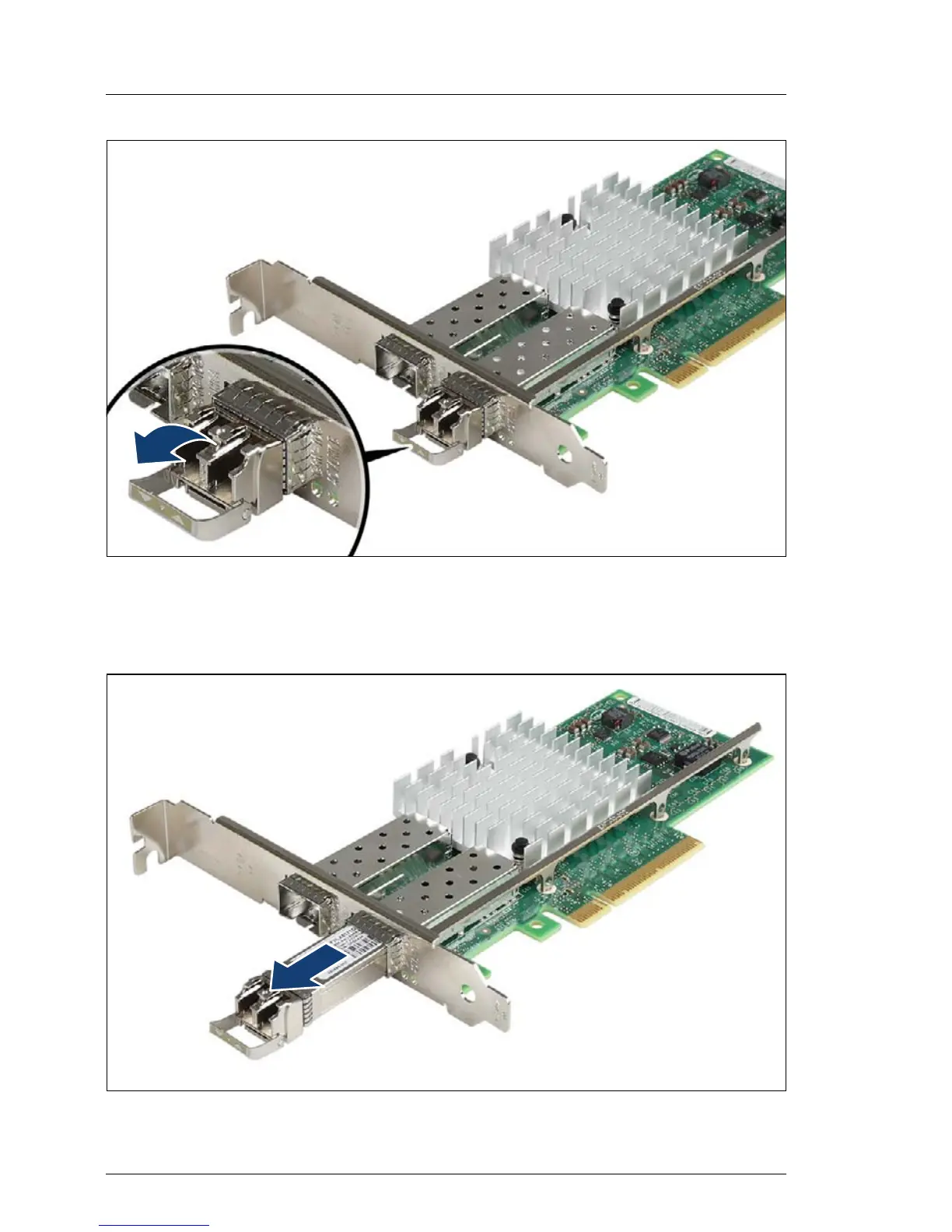

Figure 160: Unlatching the
locking bail
Ê
Carefully unlatch and fold down the locking bail on the SFP+ transceiver
module to eject the transceiv
er from the socket connector
.
Figure 161: Removing the SFP+ transceiver
289
