298
Upgrade and Mai
ntenance Manual
TX140
S1
Main memory

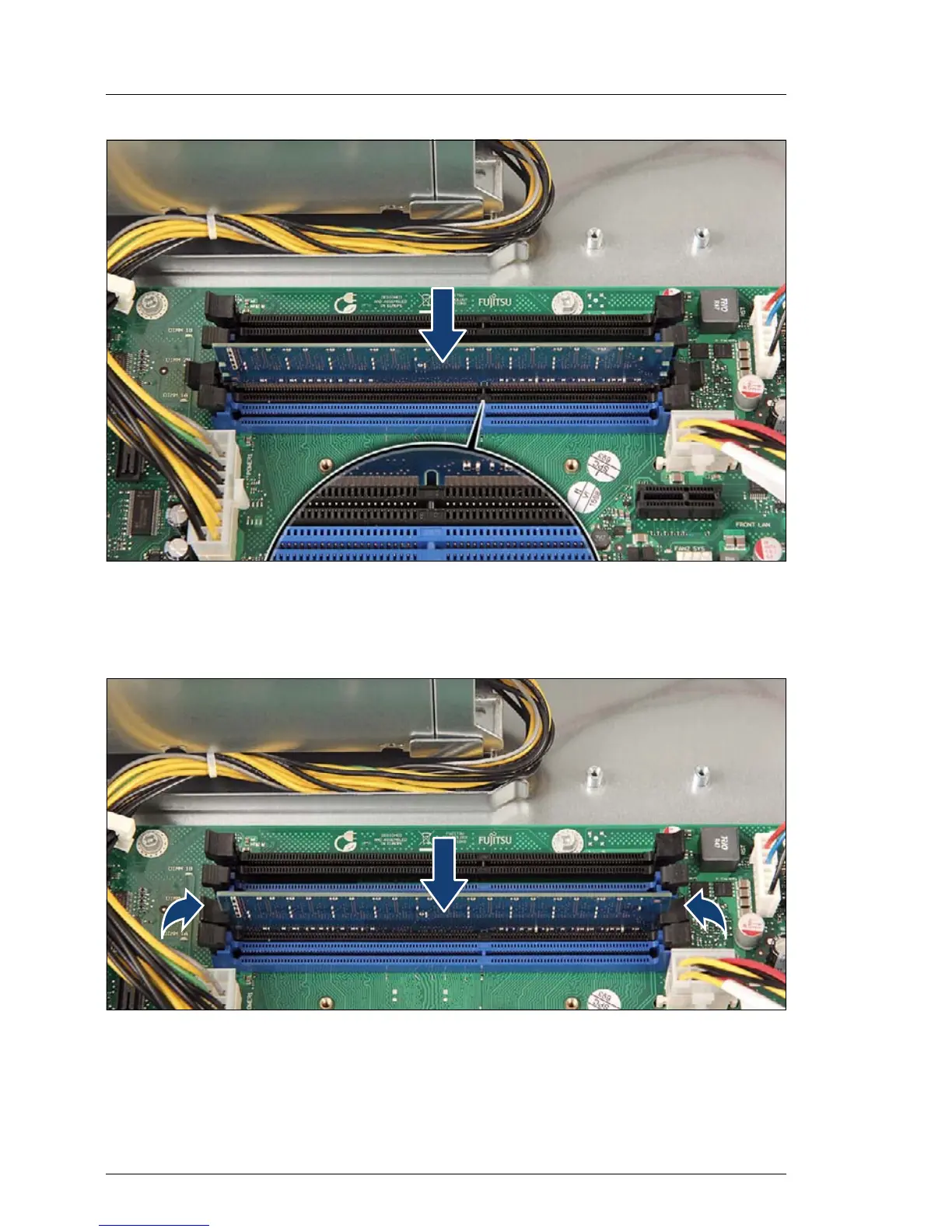

Figure 164: Instal
ling memory modules
(B)
Ê
Align the notch on the bottom of the module wi
th the crossbar in the
connector (see close-up).
Figure 165: Instal
ling memory modules
(C)
Ê
Press down on the memory module until the securing cli
ps snap into the
cutout
s at each end of the module.
297
