Fujitsu PRIMERGY TX140 S1 - Page 317

TX140 S1 Upgrade and Maintenance Manual 317
Processors

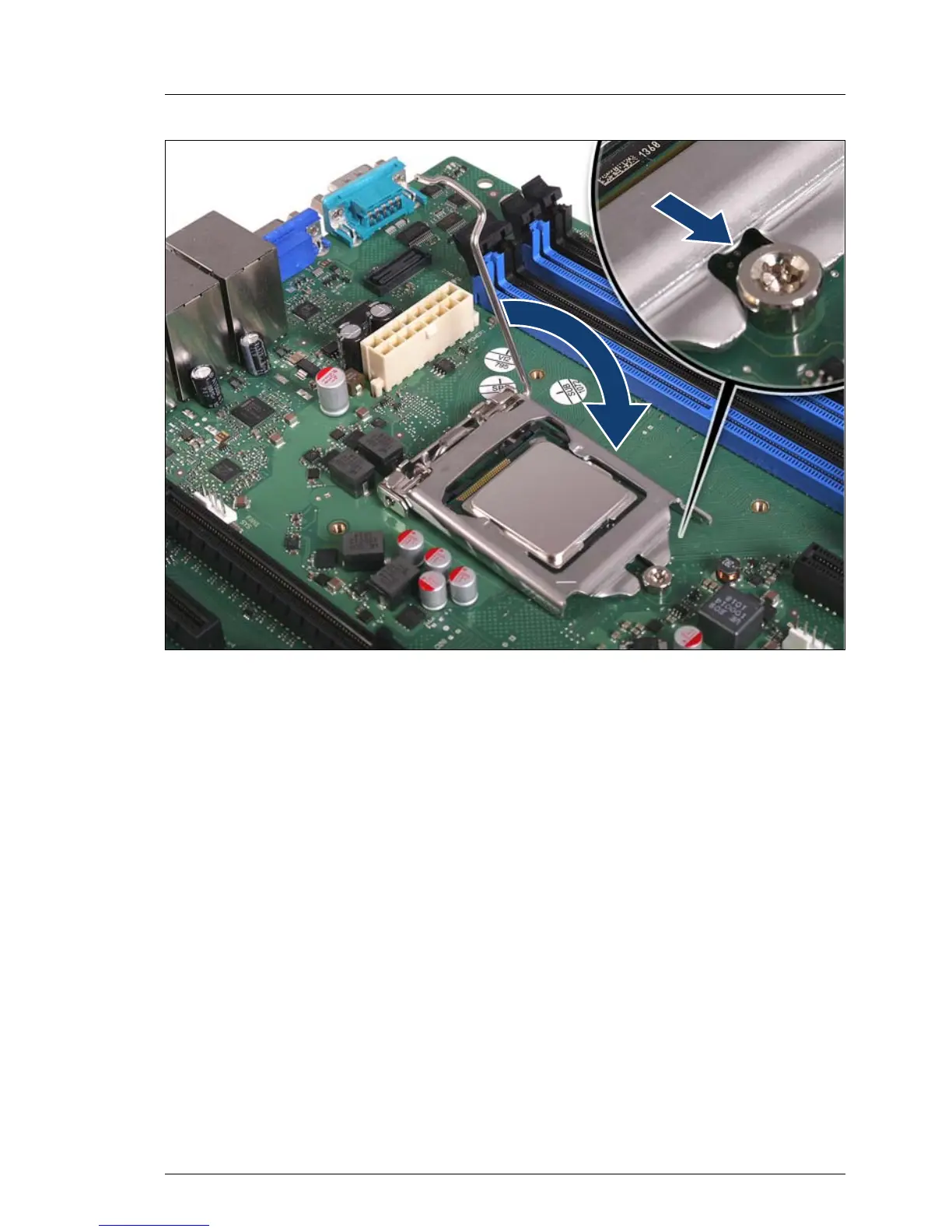

Figure 175: Closing the load plate (B)
Ê Lower the socket lever while making sure that the front edge of the load plate
slides under the shoulder screw cap (see close-up) as the lever is lowered.
