TX140 S1 Upgrade and Maintenance Manual 329
Accessible drives

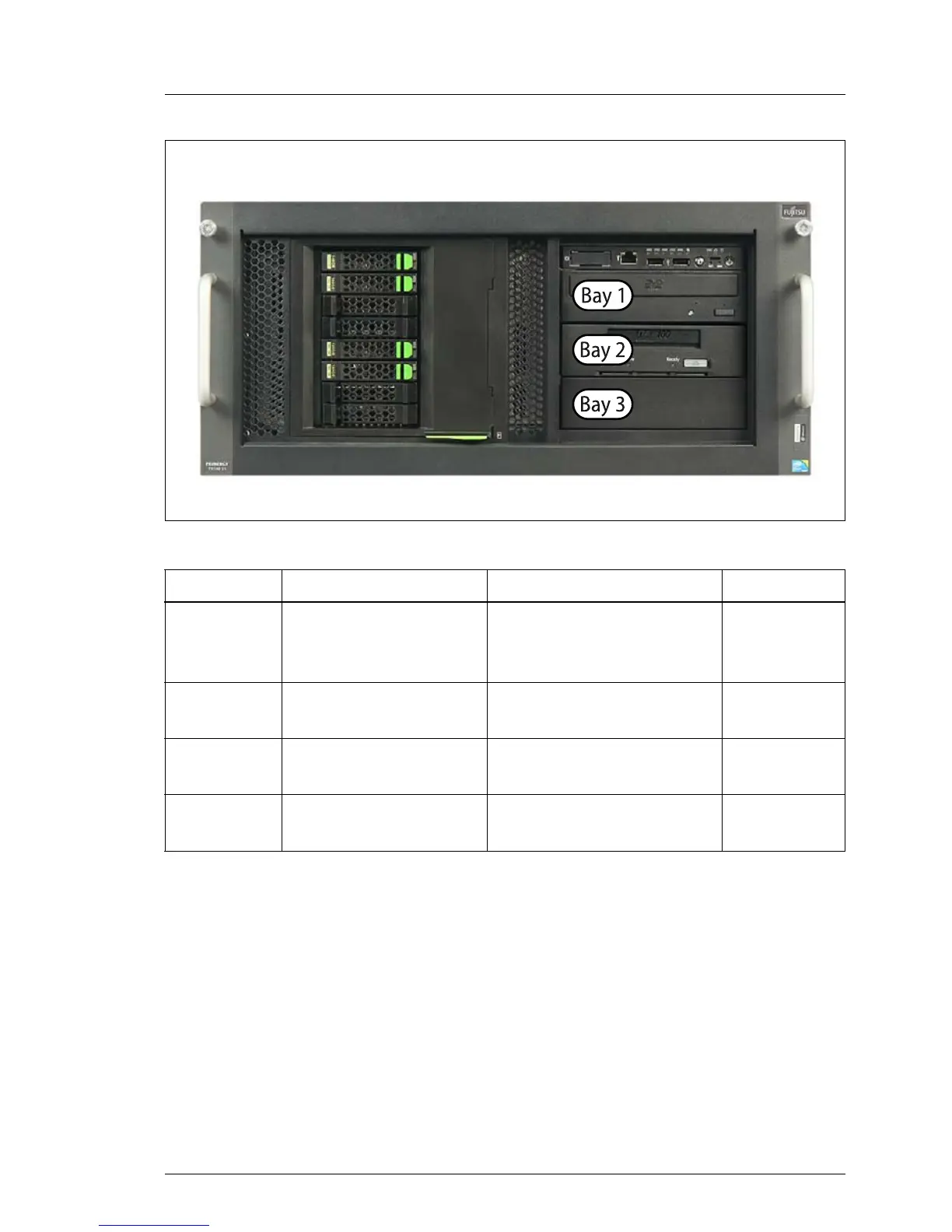

Figure 183: Accessible drives mounting order (rack server)
Sequence Accessible drive Bay Max. no.
1
Optical disk drive
or slimline optical disk
drive
Bay 1 1
2 Backup drive LTOx
Bay 2
Bay 3 if bay 2 is occupied
1
3 Backup drive DAT
Bay 2
Bay 3 if bay 2 is occupied
1
4 Backup drive RDX
Bay 2
Bay 3 if bay 2 is occupied
1
Table 9: Accessible drive mounting sequence
5.25 inch x 1.6 inch
