TX140 S1 Upgrade and Maintenance Manual 343
Accessible drives

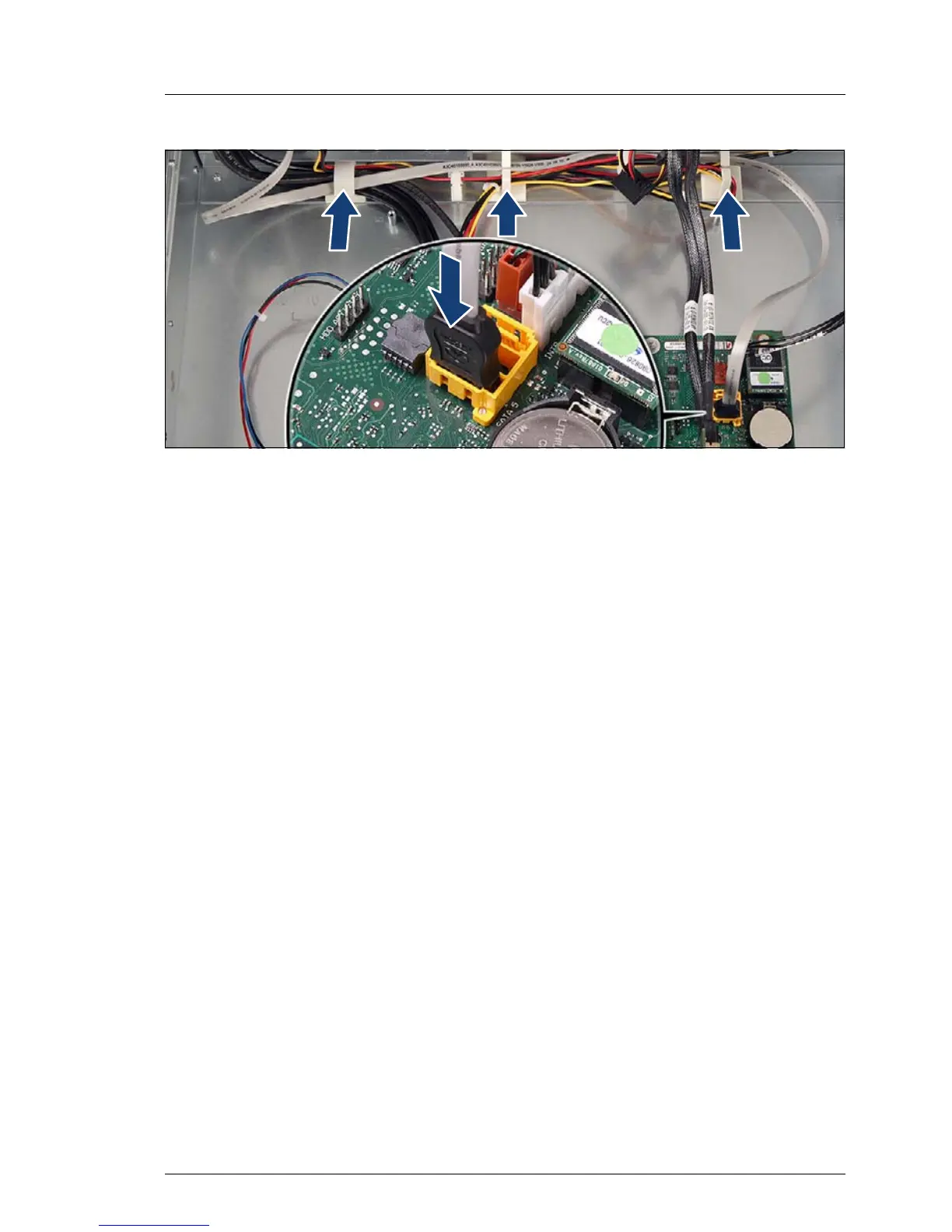

Figure 197: Routing ODD cables
Ê Run the ODD SATA and power cables through the cable clamps (see
arrows) as shown.
Ê Ensure that the SATA ODD cable is connected to system board connector
SATA 5 (see close-up).
