346 Upgrade and Maintenance Manual TX140 S1
Accessible drives

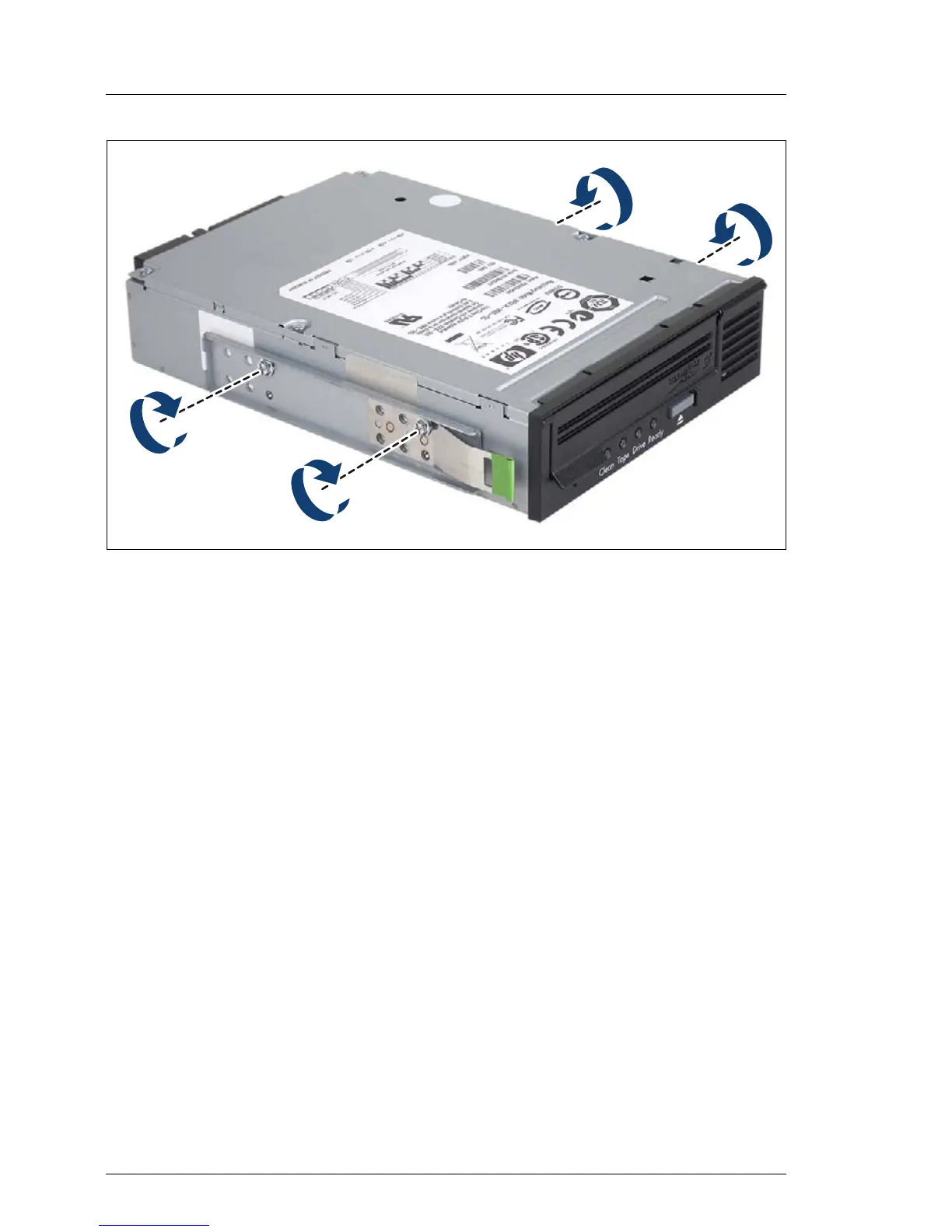

Figure 201: Attaching EasyClick rails to the backup drive (LTO)
Ê Attach Easyclick rails on either side of the backup drive, each with two
M3 x 4.5 mm screws.
I – Use the first holes in the bottom or top row of the perforated rail
as shown.
– Use the screws which are provided with the packaging contents of
the backup drive.
