364 Upgrade and Maintenance Manual TX140 S1
Accessible drives

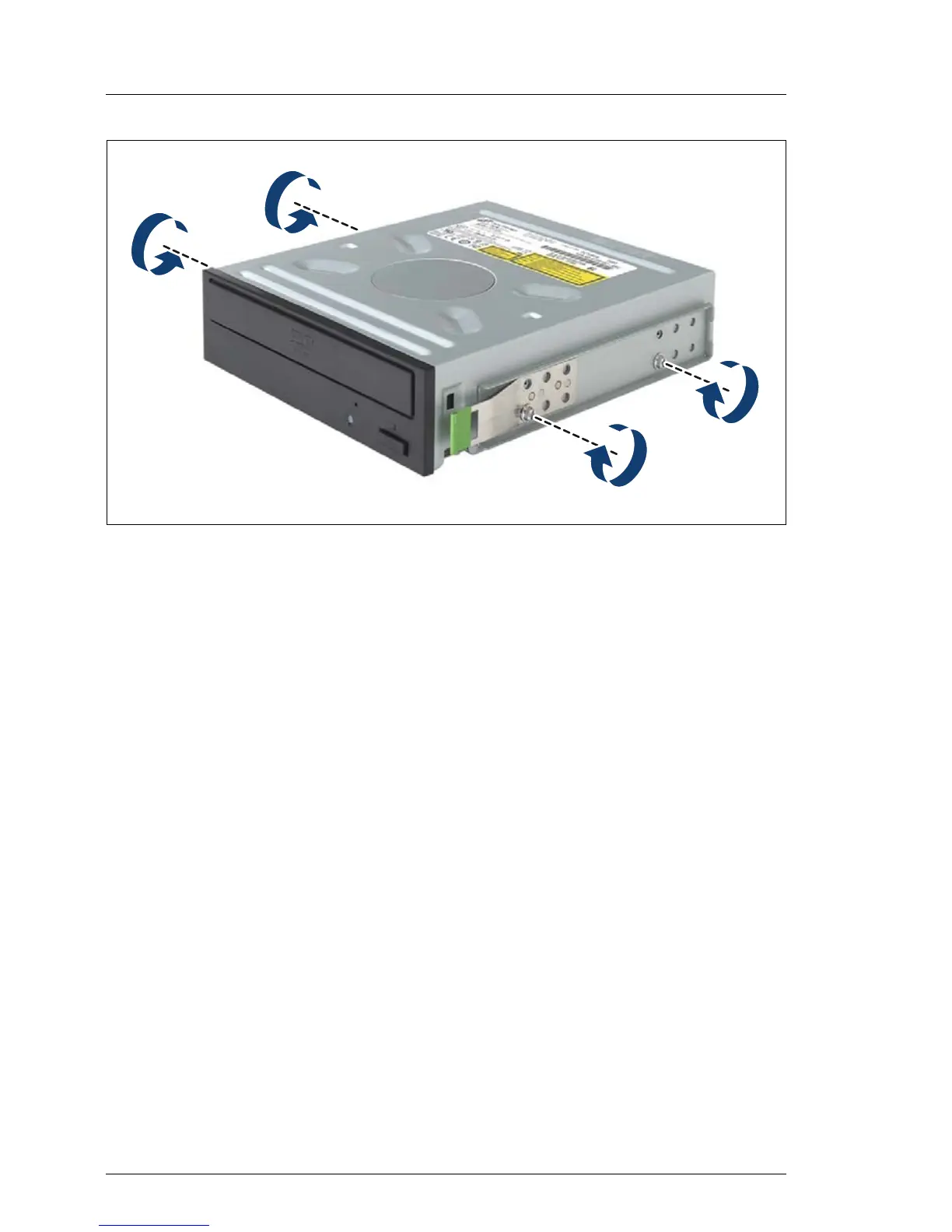

Figure 216: Installing EasyClick rails
Ê Attach EasyClick rails on either side of the new optical disk drive, each with
two M3 x 4.5 mm screws.
I – Use the first holes in the bottom row of the perforated rail as
shown.
– Use the screws which are provided with the packaging contents of
the optical disk drive.
Ê Install the new ODD as described in section "Installing an optical disk drive
(ODD)" on page 332.
