368 Upgrade and Maintenance Manual TX140 S1
Accessible drives

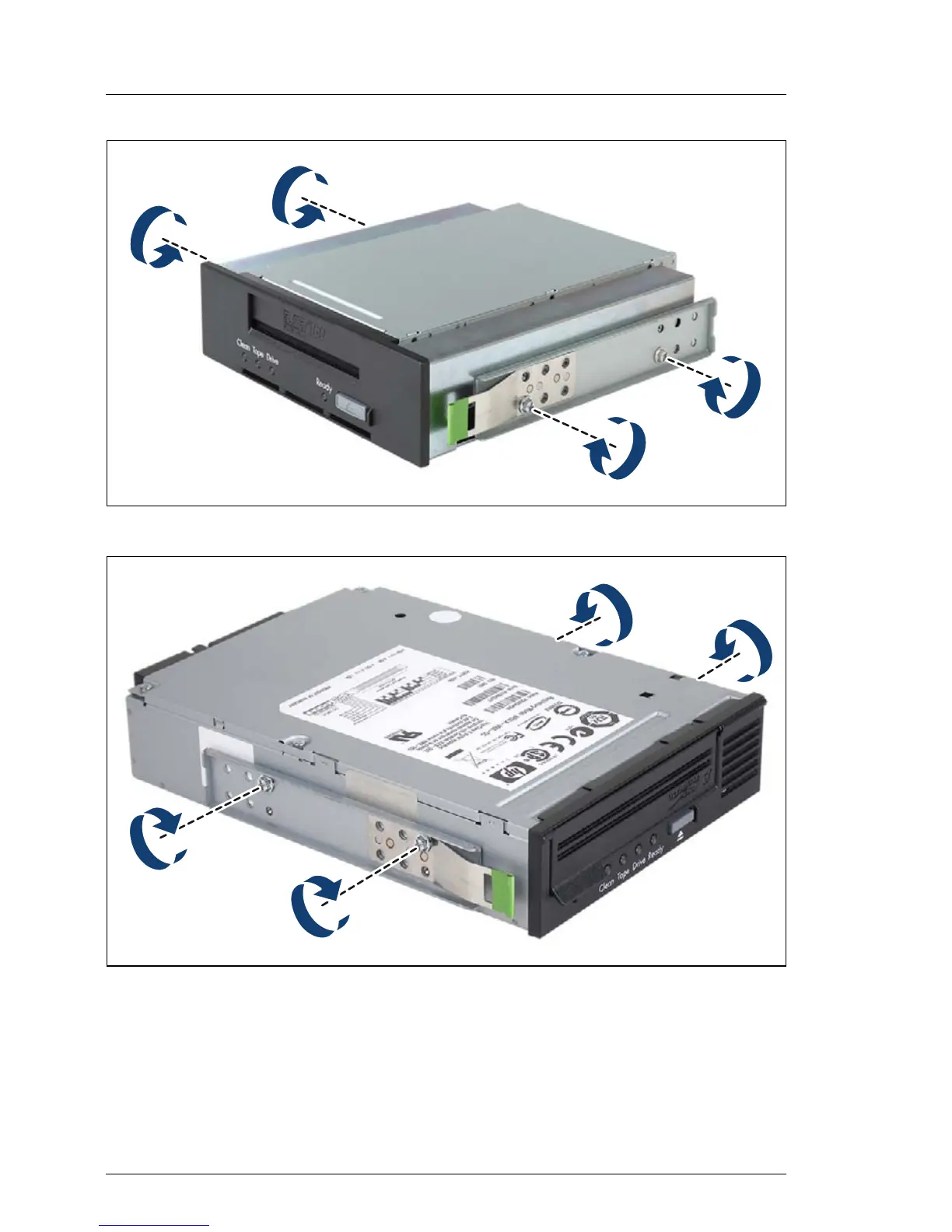

Figure 221: Attaching EasyClick rails to the backup drive (DDS)
Figure 222: Attaching EasyClick rails to the backup drive (LTO)
Ê Attach Easyclick rails on either side of the backup drive, each with two
screws:
– DDS and RDX drives: M3 x 4.5 mm screws
– LTO drives: UNC 6-32 x 4.76 mm screws
